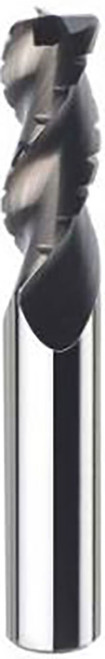

SGS 1" Dia, 3 Flute, Chip Breaker Corner Radius End Mill - 33424

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-33424
$1,563.68
SGS 1" Dia, 4-1/8" LOC, 1" Shank Dia, 0.0300" Radius, 3 Flute, 38 Degree Helix, Uncoated, Series 43CB, S-Carb, Chip Breaker Corner Radius End Mill - 33424

Specifications

Series
43CB
Unit of Measure
Fractional
Length of Cut
4-1/8 Inch
Shank Size
1 Inch
Number Of Flutes
3
Shank Type
Straight
Overall Length
7 Inch
Material
Solid Carbide
Coating/Finish
Uncoated
Cutting Diameter (Decimal)
1
Cutting Diameter (Metric)
25.40
Length of Cut (Decimal)
4.13
Length of Cut (Metric)
104.78
Shank Diameter (Decimal)
1
Shank Diameter (Metric)
25.40
Overall Length (Decimal)
7
Overall Length (Metric)
177.80
Flute Type
Spiral
Helix Angle
38 degrees
Primary Workpiece Material
(N) Non-Ferrous Materials
Secondary Workpiece Material
Plastics & Composites
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.00051
Cutting Diameter Tolerance (Metric)
+0.000/-0.013
Shank Diameter Tolerance (ISO)
h6
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Additional Geometry
Chip Breaker / Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
Yes
Weldon Flat
No
Variable Helix
No
Center Cutting
Yes
Chip Breaker
Yes
Type
S-Carb
Cutting Diameter
1 Inch
Corner Radius (Decimal)
0.03
Corner Radius (Metric)
0.76
SGS 1" Dia, 3 Flute, Chip Breaker Corner Radius End Mill - 33424
$1,563.68
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
