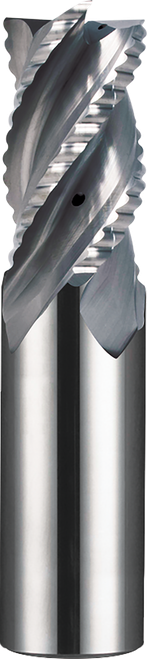

SGS Corner Radius End Mill: 1" Dia, 1-3/4" LOC, 4-1/2" OAL, .030" Corner Radius, 2-1/2" Reach, 3 Flute, TiB2, Solid Carbide, 34008

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-34008
$1,551.08

SGS APR corner radius end mill for non-ferrous metals, 3 flutes, 38 degree helix, spiral flutes, center cutting, straight shank, internal coolant. Solid carbide, TiB2 coating. Manufacturer part number 34008.

Specifications

Series
APR
Unit of Measure
Inch
Cutting Diameter (Fractional)
1
Shank Diameter (Fractional)
1
Number of Flutes
3
Shank Type
Straight
Length of Cut (Fractional)
1-3/4
Material
Solid Carbide
Coating/Finish
TiB2
Cutting Diameter (Decimal)
1.0000
Cutting Diameter (Metric)
25.40
Length of Cut (Decimal)
1.7500
Length of Cut (Metric)
44.45
Shank Diameter (Decimal)
1.0000
Shank Diameter (Metric)
25.40
Overall Length (Decimal)
4.5000
Overall Length (Metric)
114.30
Flute Type
Spiral
Helix Angle
38 degrees
Size System
Fractional
Reach (Decimal)
2.5000
Reach (Metric)
63.50
Reach (Fractional)
2-1/2
Neck Diameter (Decimal)
0.9780
Neck Diameter (Metric)
24.84
Cutting Diameter Tolerance (Decimal)
-0.0004/-0.0040
Cutting Diameter Tolerance (Metric)
-0.010/-0.100
Helix Direction
Right
Corner Radius Tolerance (Decimal)
+0.0020/-0.0020
Corner Radius Tolerance (Metric)
+0.050/-0.050
Coolant Option
Internal Coolant
Hand Direction
Right
End Type
Corner Radius
Performance Class
High Performance
Rake
Positive
Variable Helix
No
Center Cutting
Yes
Chip Breaker
Yes
Type
S-Carb
Overall Length (Fractional)
4-1/2
Corner Radius (Decimal)
0.0300
Corner Radius (Metric)
0.76
Length Type
Stub
Shank Tolerance
h6
Workpiece Material
Non-Ferrous
SGS Corner Radius End Mill: 1" Dia, 1-3/4" LOC, 4-1/2" OAL, .030" Corner Radius, 2-1/2" Reach, 3 Flute, TiB2, Solid Carbide, 34008
$1,551.08
