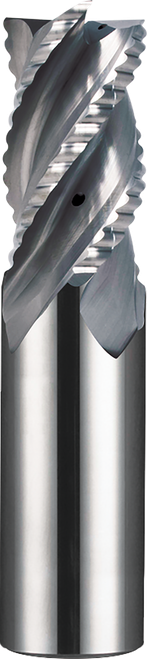

SGS 1" Dia, 1-1/2" LOC, 3-1/4" Reach, 1" Shank Dia, 0.1200" Radius, 3 Flute, Coolant-Through, 38 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series APR, S-Carb APR, Chip Breaker Corner Radius End Mill - 34015
Specifications
Unit of Measure
Fractional
Overall Length
5-1/4 Inch
Coating/Finish
Ti-NAMITE-B (TIB2)
Cutting Diameter (Decimal)
1
Cutting Diameter (Metric)
25.40
Length of Cut (Decimal)
1.50
Length of Cut (Metric)
38.10
Shank Diameter (Decimal)
1
Shank Diameter (Metric)
25.40
Overall Length (Decimal)
5.25
Overall Length (Metric)
133.35
Primary Workpiece Material
(N) Non-Ferrous Materials
Neck Diameter (Decimal)
0.98
Neck Diameter (Metric)
24.84
Cutting Diameter Tolerance (Decimal)
+0.0004/-0.0020
Cutting Diameter Tolerance (Metric)
+0.010/-0.050
Shank Diameter Tolerance (ISO)
h6
Corner Radius Tolerance (Decimal)
+0.0000/-0.0012
Corner Radius Tolerance (Metric)
+0.000/-0.030
Coolant Option
Internal Coolant
Additional Geometry
Right Hand Cut Direction (RHC)
Corner Radius (Decimal)
0.12
Corner Radius (Metric)
3.05
