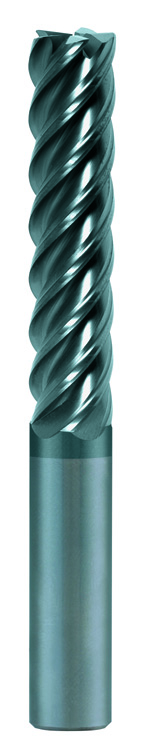

SGS Corner Radius End Mill: 1" Dia, 1-1/2" LOC, 4" OAL, .060" Corner Radius, 5 Flute, AlTiN (Ti-NAMITE-A), Solid Carbide, 37220

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-37220
$1,028.98

SGS Z5C corner radius end mill for steel, stainless steel, cast iron and high-temp alloys, 5 flutes, 37 degree helix, spiral flutes, Weldon flat shank, external coolant. Solid carbide, AlTiN coating. Manufacturer part number 37220.

Specifications

Series
Z5C
Unit of Measure
Inch
Shank Diameter (Fractional)
1
Length of Cut (Fractional)
1-1/2
Number of Flutes
5
Shank Type
Weldon Flat
Overall Length (Fractional)
4
Material
Solid Carbide
Coating/Finish
AlTiN
Cutting Diameter (Decimal)
1.0000
Cutting Diameter (Metric)
25.40
Length of Cut (Decimal)
1.5000
Length of Cut (Metric)
38.10
Shank Diameter (Decimal)
1.0000
Shank Diameter (Metric)
25.40
Overall Length (Decimal)
4.0000
Overall Length (Metric)
101.60
Flute Type
Spiral
Helix Angle
37 degrees
Shank Length (Fractional)
2-1/2
Cutting Diameter (Fractional)
1
Secondary Workpiece Material
Hardened Steel
Non-Cutting Center Diameter (Decimal)
0.3500
Non-Cutting Center Diameter (Metric)
8.89
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Size System
Fractional
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Helix Direction
Right
Hand Direction
Right
End Type
Corner Radius
Performance Class
High Performance
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Type
Z-Carb-HPR
Shank Length (Decimal)
2.5000
Corner Radius (Decimal)
0.0600
Corner Radius (Metric)
1.52
Length Type
Standard
Rake
Positive
Shank Length (Metric)
63.50
Shank Tolerance
h6
Workpiece Material
Steel, Stainless Steel, Cast Iron, High-Temp Alloy
