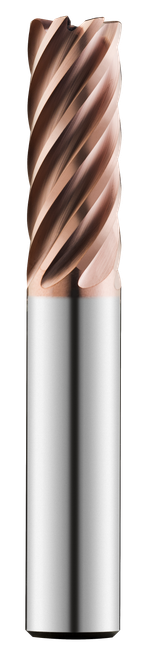

SGS Corner Radius End Mill: 1" Dia, 4" LOC, 7" OAL, .030" Corner Radius, 7 Flute, TM (Ti-NAMITE-M), Solid Carbide, 77329

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-77329
$1,438.58

SGS 77C corner radius end mill for steel, stainless steel, cast iron and high-temp alloys, 7 flutes, 37 degree helix, spiral flutes, straight shank, external coolant. Solid carbide, Ti-NAMITE-M coating. Manufacturer part number 77329.

Specifications

Series
77C
Unit of Measure
Inch
Shank Diameter (Fractional)
1
Length of Cut (Fractional)
4
Number of Flutes
7
Shank Type
Straight
Overall Length (Fractional)
7
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-M
Cutting Diameter (Decimal)
1.0000
Cutting Diameter (Metric)
25.40
Length of Cut (Decimal)
4.0000
Length of Cut (Metric)
101.60
Shank Diameter (Decimal)
1.0000
Shank Diameter (Metric)
25.40
Overall Length (Decimal)
7.0000
Overall Length (Metric)
177.80
Flute Type
Spiral
Helix Angle
37 degrees
Cutting Diameter (Fractional)
1
Secondary Workpiece Material
Hardened Steel
Non-Cutting Center Diameter (Decimal)
0.3380
Non-Cutting Center Diameter (Metric)
8.59
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Hand Direction
Right
Shank Diameter Tolerance (Decimal)
+0.0000 / -0.00051
Shank Diameter Tolerance (Metric)
+0.0000 / -0.0013
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
End Type
Corner Radius
Performance Class
High Performance
Rake
Positive
Shank Tolerance
h6
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Type
H-Carb
Size System
Fractional
Corner Radius (Decimal)
0.0300
Corner Radius (Metric)
0.76
Helix Direction
Right
Length Type
Extra Long
Workpiece Material
Steel, Stainless Steel, Cast Iron, High-Temp Alloy
SGS Corner Radius End Mill: 1" Dia, 4" LOC, 7" OAL, .030" Corner Radius, 7 Flute, TM (Ti-NAMITE-M), Solid Carbide, 77329
$1,438.58
