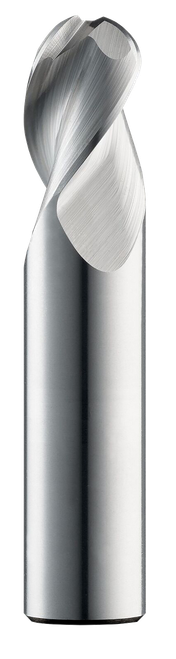

SGS 10.00mm Dia, 3 Flute, Ball Nose End Mill - 44931

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-44931
$327.48
SGS 10.00mm Dia, 15.00mm LOC, 10.00mm Shank Dia, 3 Flute, 38 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series 43MB, S-Carb, Ball Nose End Mill - 44931

Specifications

Series
43MB
Unit of Measure
Metric
Length of Cut
15 mm
Shank Size
10 mm
Number Of Flutes
3
Shank Type
Straight
Overall Length
75 mm
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-B (TIB2)
Cutting Diameter (Decimal)
0.40
Length of Cut (Decimal)
0.60
Shank Diameter (Decimal)
0.40
Overall Length (Decimal)
2.96
Flute Type
Spiral
Helix Angle
38 degrees
Primary Workpiece Material
(N) Non-Ferrous Materials
Secondary Workpiece Material
Plastics & Composites
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.00035
Cutting Diameter Tolerance (Metric)
+0.000/-0.009
Shank Diameter Tolerance (ISO)
h6
Corner Radius Tolerance (Decimal)
+0.0005/-0.0005
Corner Radius Tolerance (Metric)
+0.013/-0.013
Coolant Option
External Coolant
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
Yes
Weldon Flat
No
Variable Helix
No
Center Cutting
Yes
Type
S-Carb
Cutting Diameter
10 mm
SGS 10.00mm Dia, 3 Flute, Ball Nose End Mill - 44931
$327.48
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
