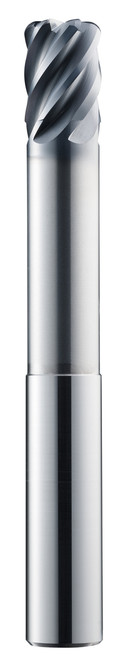

SGS 10.00mm Dia, 12.00mm LOC, 39.98mm Reach, 10.00mm Shank Dia, 1.50mm Radius, 6 Flute, 41 Degree Helix, Ti-NAMITE-X (TX) Coated, Series 51CR, T-Carb, Corner Radius End Mill - 45131
Specifications
Coating/Finish
Ti-NAMITE-X (TX)
Cutting Diameter (Decimal)
0.40
Length of Cut (Decimal)
0.48
Shank Diameter (Decimal)
0.40
Overall Length (Decimal)
3.94
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (S) High Temp Alloy"
Secondary Workpiece Material
(H) Hardened Materials
Neck Diameter (Decimal)
0.38
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Shank Diameter Tolerance (ISO)
h6
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Additional Geometry
Right Hand Cut Direction (RHC)
Corner Radius (Decimal)
0.06
