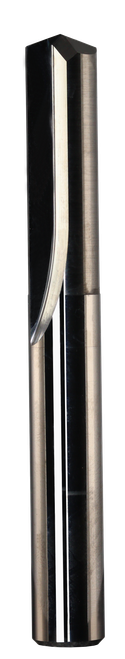

SGS Screw Machine Drill: 11/64" Dia, 1-1/16" Flute Length, 2-1/8" OAL, 140° Point, Bright/Uncoated, Solid Carbide, 56111

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-56111
$78.46

SGS Series 106 screw machine drill for steel and cast iron, 2 flutes, 0 degree helix, 140 degree point, straight flutes, straight shank, external coolant. Solid carbide, bright/uncoated. Manufacturer part number 56111.

Specifications

Series
106
Unit of Measure
Inch
Shank Diameter (Fractional)
11/64
Flute Length (Fractional)
1-1/16
Overall Length (Fractional)
2-1/8
Hand Direction
Right
Material
Solid Carbide
Cutting Diameter (Decimal)
0.1719
Cutting Diameter (Metric)
4.37
Shank Diameter (Decimal)
0.1719
Shank Diameter (Metric)
4.37
Overall Length (Decimal)
2.1250
Overall Length (Metric)
53.98
Flute Type
Straight
Cutting Diameter (Fractional)
11/64
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.00000 / -0.00050
Cutting Diameter Tolerance (Metric)
+0.0000 / -0.0127
Helix Angle
0 degrees
Coolant Option
External Coolant
Coating/Finish
Bright/Uncoated
Number of Flutes
2
Shank Type
Straight
Performance Class
General Purpose
Variable Helix
No
Shank Length (Decimal)
1.1280
Chip Breaker
No
Point Angle
140 degrees
Flute Length (Decimal)
1.0625
Flute Length (Metric)
26.99
Number of Margins
2
Shank Length (Metric)
28.65
Usable Length (Decimal)
0.8594
Usable Length (Metric)
21.83
Usable Length (Fractional)
55/64
Reach Multiple
3xD
Shank Tolerance
h6
Size System
Fractional
Workpiece Material
Steel, Cast Iron
SGS Screw Machine Drill: 11/64" Dia, 1-1/16" Flute Length, 2-1/8" OAL, 140° Point, Bright/Uncoated, Solid Carbide, 56111
$78.46
