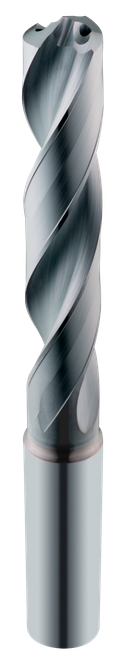

SGS 11.70mm Dia, 135 Degree Point, Solid Carbide Drill - 66487

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-66487
$457.78
SGS 11.70mm Dia, 135 Degree Point, 12.00mm Shank Dia, 102.00mm OAL, 2 Flute, 3xD, Coolant-Through, Ti-NAMITE-X (TX) Coated, Series 142P, Hi-PerCarb 142P, Solid Carbide Drill - 66487

Specifications

Series
142P
Unit of Measure
Metric
Diameter
11.70 mm
Shank Size
12 mm
Overall Length
102 mm
Cutting Direction
Right
Material
Solid Carbide
Cutting Diameter (Decimal)
0.47
Shank Diameter (Decimal)
0.48
Overall Length (Decimal)
4.02
Flute Type
Spiral
Helix Angle
30 degrees
Primary Workpiece Material
"(P) Steel, (N) Non-Ferrous Materials, (H) Hardened Materials"
Secondary Workpiece Material
(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy
Cutting Diameter Tolerance (Decimal)
+.00028 / +.00098
Cutting Diameter Tolerance (Metric)
+.0071 / +.0251
Shank Diameter Tolerance (ISO)
h6
Coolant Option
Internal Coolant
Coating Description
Ti-NAMITE-X (TX)
Additional Geometry
Right Hand Cut Direction (RHC)
High Performance
Yes
Weldon Flat
No
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Point Angle
135 degrees
Flute Length (Decimal)
2.17
DIN Standard
DIN 6537
Number of Margins
4
Flute Length
55 mm
Usable Length (Decimal)
1.58
Usable Length (Metric)
40
Point Length (Decimal)
0.10
Point Length (Metric)
2.42
Self Centering
Yes
Length Of Cut
3 x D
SGS 11.70mm Dia, 135 Degree Point, Solid Carbide Drill - 66487
$457.78
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
