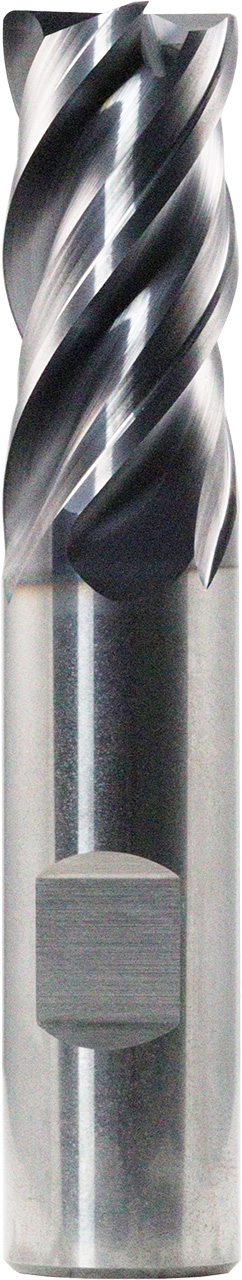

SGS Corner Radius End Mill: 12.00mm Dia, 26.00mm LOC, 83.00mm OAL, 1.00mm Corner Radius, 4 Flute, AlTiN (Ti-NAMITE-A), Solid Carbide, 46472

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-46472
$222.10

SGS ZH1M corner radius end mill for steel, stainless steel, cast iron and high-temp alloys, 4 flutes, variable helix, spiral flutes, center cutting, Weldon flat shank, external coolant. Solid carbide, AlTiN coating. Manufacturer part number 46472.

Specifications

Series
ZH1M
Unit of Measure
Metric
Shank Diameter (Metric)
12.00
Length of Cut (Metric)
26.00
Number of Flutes
4
Shank Type
Weldon Flat
Overall Length (Metric)
83.00
Material
Solid Carbide
Coating/Finish
AlTiN
Cutting Diameter (Decimal)
0.4724
Length of Cut (Decimal)
1.0236
Shank Diameter (Decimal)
0.4724
Overall Length (Decimal)
3.2677
Flute Type
Spiral
Helix Angle
38-41 degrees
Cutting Diameter (Metric)
12.00
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Size System
Metric
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Helix Direction
Right
Hand Direction
Right
DIN Standard (Shank)
DIN 6535 HB
End Type
Corner Radius
Performance Class
High Performance
Variable Helix
Yes
Center Cutting
Yes
Chip Breaker
No
Type
Z-Carb-HTA
Shank Length (Decimal)
2.2460
Corner Radius (Decimal)
0.0394
Shank Length (Metric)
57.05
Corner Radius (Metric)
1.00
Length Type
Standard
Maximum Workpiece Hardness
45 HRC
Rake
Positive
Shank Tolerance
h6
Workpiece Material
Steel, Stainless Steel, Cast Iron, High-Temp Alloy
SGS Corner Radius End Mill: 12.00mm Dia, 26.00mm LOC, 83.00mm OAL, 1.00mm Corner Radius, 4 Flute, AlTiN (Ti-NAMITE-A), Solid Carbide, 46472
$222.10
