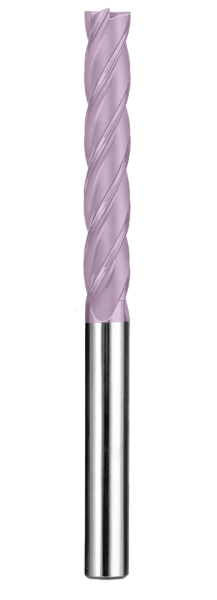

SGS 12.00mm Dia, 4 Flute, Square End End Mill - 49408

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-49408
$451.06
SGS 12.00mm Dia, 75.00mm LOC, 12.00mm Shank Dia, 4 Flute, 30 Degree Helix, Ti-NAMITE-C (TiCN) Coated, Series X1S, Square End End Mill - 49408

Specifications

Series
X1S
Unit of Measure
Metric
Diameter
12 mm
Length of Cut
75 mm
Shank Size
12 mm
Number Of Flutes
4
Shank Type
Straight
Overall Length
150 mm
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
TiCN
Cutting Diameter (Decimal)
0.48
Length of Cut (Decimal)
2.96
Shank Diameter (Decimal)
0.48
Overall Length (Decimal)
5.91
Flute Type
Spiral
Helix Angle
30 degrees
End Configuration
Square End
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (N) Non-Ferrous Materials, (S) High Temp Alloy"
Secondary Workpiece Material
(H) Hardened Materials
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Coating Description
Ti-NAMITE-C (TiCN)
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
No
Weldon Flat
No
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
SGS 12.00mm Dia, 4 Flute, Square End End Mill - 49408
$451.06
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
