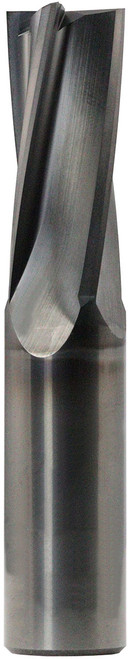

SGS 12.00mm Dia, 4 Flute, Square End End Mill - 83062

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-83062
$484.18
SGS 12.00mm Dia, 38.00mm LOC, 12.00mm Shank Dia, 4 Flute, 12 Degree Helix, Uncoated, Series 27M, Series 27 - CFRP Slow Helix, Square End End Mill - 83062

Specifications

Series
27M
Unit of Measure
Metric
Diameter
12 mm
Length of Cut
38 mm
Shank Size
12 mm
Number Of Flutes
4
Shank Type
Straight
Overall Length
89 mm
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
Uncoated
Cutting Diameter (Decimal)
0.48
Length of Cut (Decimal)
1.50
Shank Diameter (Decimal)
0.48
Overall Length (Decimal)
3.51
Flute Type
Spiral
Helix Angle
12 degrees
End Configuration
Square End
Primary Workpiece Material
(N) Non-Ferrous Materials
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0030
Cutting Diameter Tolerance (Metric)
+0.000/-0.080
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Coating Description
Uncoated
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
Yes
Weldon Flat
No
Variable Helix
Yes
Center Cutting
Yes
Chip Breaker
No
SGS 12.00mm Dia, 4 Flute, Square End End Mill - 83062
$484.18
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
