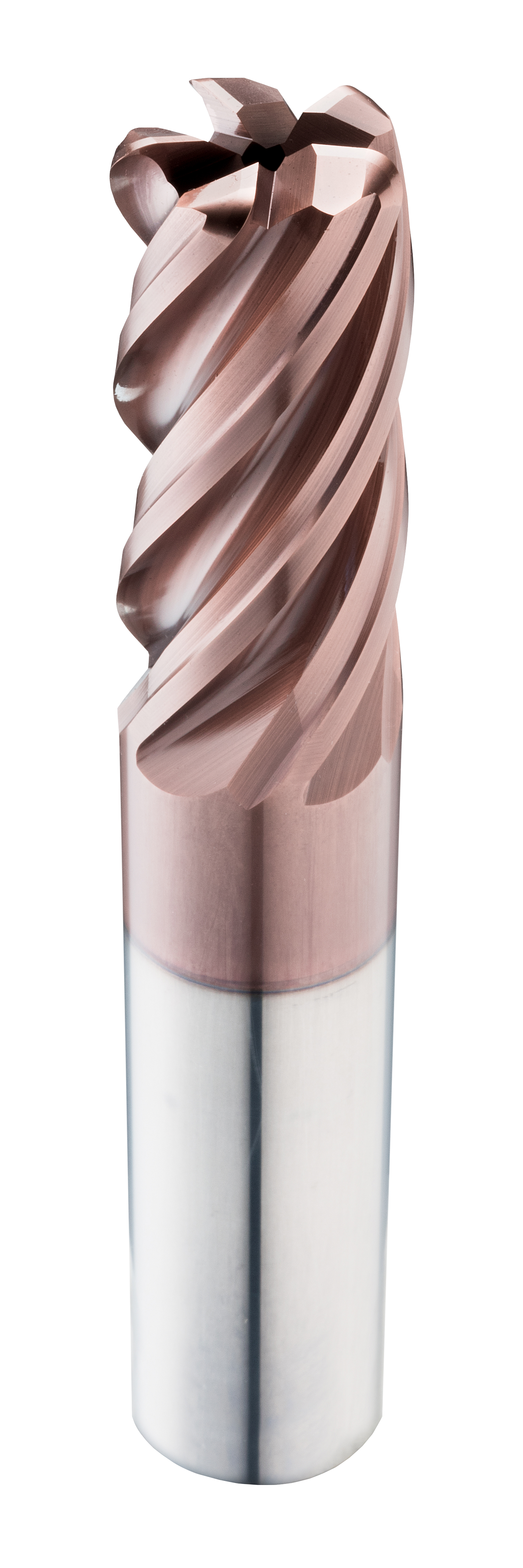

SGS 12.00mm Dia, 5 Flute, Corner Radius End Mill - 47556

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-47556
$266.27
SGS 12.00mm Dia, 36.00mm LOC, 12.00mm Shank Dia, 3.00mm Radius, 5 Flute, 37 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series Z5C, Z-Carb-HPR, Corner Radius End Mill - 47556

Specifications

Series
Z5C
Unit of Measure
Metric
Length of Cut
36 mm
Shank Size
12 mm
Number Of Flutes
5
Shank Type
Straight
Overall Length
83 mm
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-A (AlTiN)
Cutting Diameter (Decimal)
0.48
Length of Cut (Decimal)
1.42
Shank Diameter (Decimal)
0.48
Overall Length (Decimal)
3.27
Flute Type
Spiral
Helix Angle
37 degrees
Tool Length
Long
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (S) High Temp Alloy"
Secondary Workpiece Material
(H) Hardened Materials
Non-Cutting Center Diameter (Decimal)
0.17
Non-Cutting Center Diameter (Metric)
4.19
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Shank Diameter Tolerance (ISO)
h6
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
Yes
Weldon Flat
No
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Type
Z-Carb-HPR
Cutting Diameter
12 mm
Corner Radius (Decimal)
0.12
Corner Radius
3 mm
SGS 12.00mm Dia, 5 Flute, Corner Radius End Mill - 47556
$266.27
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
