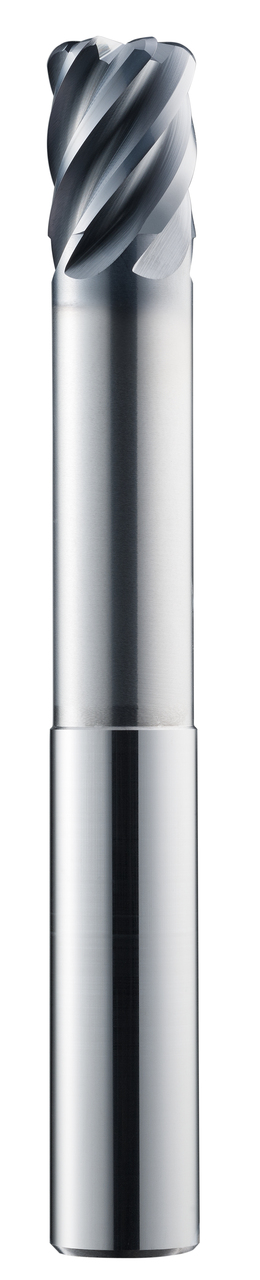

SGS Corner Radius End Mill: 12.00mm Dia, 15.00mm LOC, 100.00mm OAL, 0.50mm Corner Radius, 48.01mm Reach, 6 Flute, TX (Ti-NAMITE-X), Solid Carbide, 45193

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-45193
$407.21

SGS 51CR corner radius end mill for steel, stainless steel, cast iron and high-temp alloys, 6 flutes, 41 degree helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, Ti-NAMITE-X coating. Manufacturer part number 45193.

Specifications

Series
51CR
Unit of Measure
Metric
Shank Diameter (Metric)
12.00
Length of Cut (Metric)
15.00
Number of Flutes
6
Shank Type
Straight
Overall Length (Metric)
100.00
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-X
Cutting Diameter (Decimal)
0.4724
Length of Cut (Decimal)
0.5906
Shank Diameter (Decimal)
0.4724
Overall Length (Decimal)
3.9370
Flute Type
Spiral
Helix Angle
41 degrees
Cutting Diameter (Metric)
12.00
Secondary Workpiece Material
Hardened Steel
Reach (Decimal)
1.8900
Reach (Metric)
48.01
Neck Diameter (Decimal)
0.4480
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Size System
Metric
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Helix Direction
Right
Hand Direction
Right
End Type
Corner Radius
Performance Class
High Performance
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Type
T-Carb
Shank Length (Decimal)
2.0470
Corner Radius (Decimal)
0.0197
Shank Length (Metric)
51.99
Neck Diameter (Metric)
11.38
Corner Radius (Metric)
0.50
Length Type
Long Reach Neck
Maximum Workpiece Hardness
45 HRC
Rake
Positive
Shank Tolerance
h6
Workpiece Material
Steel, Stainless Steel, Cast Iron, High-Temp Alloy
SGS Corner Radius End Mill: 12.00mm Dia, 15.00mm LOC, 100.00mm OAL, 0.50mm Corner Radius, 48.01mm Reach, 6 Flute, TX (Ti-NAMITE-X), Solid Carbide, 45193
$407.21
