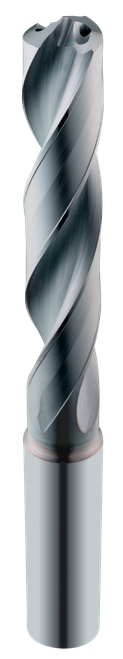

SGS 13.00mm Dia, 135 Degree Point, 14.00mm Shank Dia, 124.00mm OAL, 2 Flute, 5xD, Coolant-Through, Ti-NAMITE-X (TX) Coated, Series 142P, Hi-PerCarb 142P, Solid Carbide Drill - 66596
Specifications
Cutting Diameter (Decimal)
0.52
Shank Diameter (Decimal)
0.56
Overall Length (Decimal)
4.89
Primary Workpiece Material
"(P) Steel, (N) Non-Ferrous Materials, (H) Hardened Materials"
Secondary Workpiece Material
(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy
Cutting Diameter Tolerance (Decimal)
+.00028 / +.00098
Cutting Diameter Tolerance (Metric)
+.0071 / +.0251
Shank Diameter Tolerance (ISO)
h6
Coolant Option
Internal Coolant
Coating Description
Ti-NAMITE-X (TX)
Additional Geometry
Right Hand Cut Direction (RHC)
Flute Length (Decimal)
3.04
Usable Length (Decimal)
2.37
Usable Length (Metric)
60
Point Length (Decimal)
0.11
Point Length (Metric)
2.69
