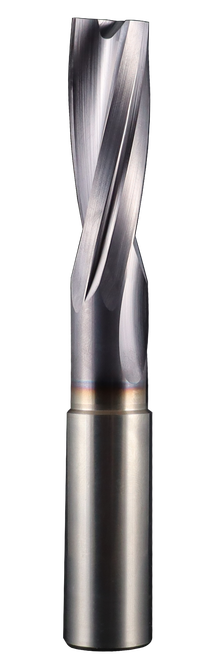

SGS 13/16" Dia, 180 Degree Point, Solid Carbide Drill - 58553

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-58553
$960.72
SGS 13/16" Dia, 180 Degree Point, 0.8661" Shank Dia, 5.7087" OAL, 2 Flute, 2xD, Ti-NAMITE-X (TX) Coated, Series 136U, Hi-PerCarb 136U Flat Bottom, Solid Carbide Drill - 58553

Specifications

Series
136U
Unit of Measure
Fractional
Diameter
13/16 Inch
Cutting Direction
Right
Material
Solid Carbide
Cutting Diameter (Decimal)
0.82
Cutting Diameter (Metric)
20.64
Shank Diameter (Decimal)
0.87
Shank Diameter (Metric)
22
Overall Length (Decimal)
5.71
Overall Length (Metric)
145
Flute Type
Spiral
Helix Angle
15 degrees
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (N) Non-Ferrous Materials, (S) High Temp Alloy, (H) Hardened Materials"
Secondary Workpiece Material
(N) Non-Ferrous Materials|Plastics & Composites
Cutting Diameter Tolerance (Decimal)
+.00031 / +.00114
Cutting Diameter Tolerance (Metric)
+.0080 / +.0290
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Coating Description
Ti-NAMITE-X (TX)
Additional Geometry
Right Hand Cut Direction (RHC)
High Performance
Yes
Weldon Flat
No
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Type
Flat Bottom
Point Angle
180 degrees
Flute Length (Decimal)
2.84
Flute Length (Metric)
72
Number of Margins
4
Usable Length (Decimal)
1.67
Usable Length (Metric)
42.28
Self Centering
Yes
Length Of Cut
2 x D
SGS 13/16" Dia, 180 Degree Point, Solid Carbide Drill - 58553
