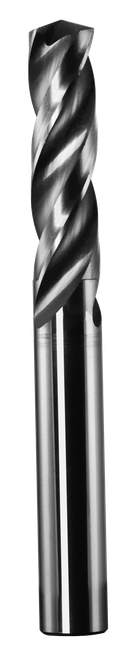

SGS 14.00mm Dia, 150 Degree Point, Solid Carbide Drill - 63038

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-63038
$622.13
SGS 14.00mm Dia, 150 Degree Point, 14.00mm Shank Dia, 107.00mm OAL, 3 Flute, 3xD, Uncoated, Series 103, Solid Carbide Drill - 63038

Specifications

Series
103
Unit of Measure
Metric
Diameter
14 mm
Shank Size
14 mm
Overall Length
107 mm
Cutting Direction
Right
Material
Solid Carbide
Cutting Diameter (Decimal)
0.56
Shank Diameter (Decimal)
0.56
Overall Length (Decimal)
4.22
Flute Type
Spiral
Helix Angle
30 degrees
Primary Workpiece Material
"(P) Steel, (K) Cast Iron, (N) Non-Ferrous Materials"
Secondary Workpiece Material
(H) Hardened Materials
Cutting Diameter Tolerance (Decimal)
+.00000 / -.00050
Cutting Diameter Tolerance (Metric)
+.0000 / -.0127
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Coating Description
Uncoated
Additional Geometry
Right Hand Cut Direction (RHC)
High Performance
No
Weldon Flat
No
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Point Angle
150 degrees
Flute Length (Decimal)
2.13
DIN Standard
DIN 6539
Number of Margins
3
Flute Length
54 mm
Usable Length (Decimal)
1.46
Usable Length (Metric)
37
Length Of Cut
3 x D
SGS 14.00mm Dia, 150 Degree Point, Solid Carbide Drill - 63038
$622.13
