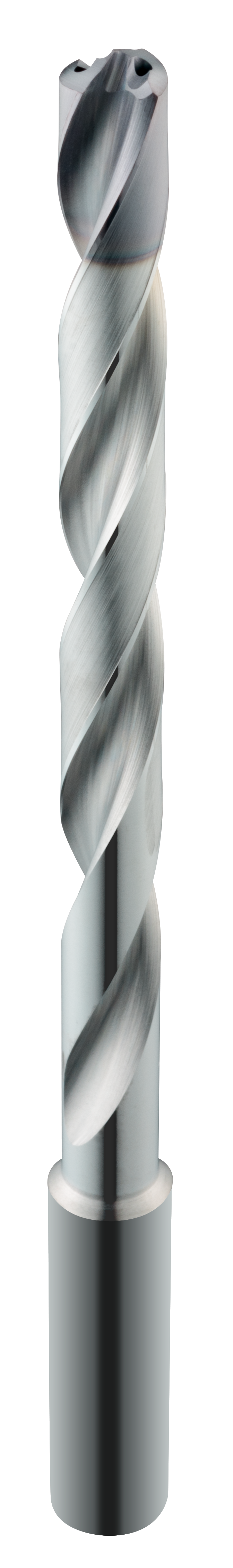

SGS 15/32" Dia, 135 Degree Point, 0.4724" Shank Dia, 4.6457" OAL, 2 Flute, 5xD, Coolant-Through, Ti-NAMITE-X (TX) Coated, Series 142P, Hi-PerCarb 142P, Solid Carbide Drill - 56462
Specifications
Unit of Measure
Fractional
Cutting Diameter (Decimal)
0.47
Cutting Diameter (Metric)
11.91
Shank Diameter (Decimal)
0.48
Shank Diameter (Metric)
12
Overall Length (Decimal)
4.65
Overall Length (Metric)
118
Primary Workpiece Material
"(P) Steel, (N) Non-Ferrous Materials, (H) Hardened Materials"
Secondary Workpiece Material
(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy
Cutting Diameter Tolerance (Decimal)
+.00028 / +.00098
Cutting Diameter Tolerance (Metric)
+.0071 / +.0251
Shank Diameter Tolerance (ISO)
h6
Coolant Option
Internal Coolant
Coating Description
Ti-NAMITE-X (TX)
Additional Geometry
Right Hand Cut Direction (RHC)
Flute Length (Decimal)
2.80
Usable Length (Decimal)
2.21
Usable Length (Metric)
56
Point Length (Decimal)
0.10
Point Length (Metric)
2.47
