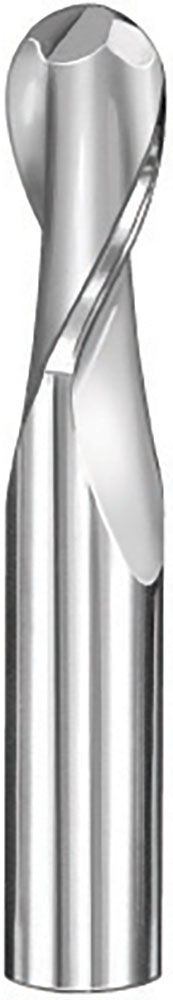

SGS Ball End Mill: 15/64" Dia, 3/4" LOC, 2-1/2" OAL, 2 Flute, Bright/Uncoated, Solid Carbide, 30330

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-30330
$72.46

SGS 03B ball end mill for steel, stainless steel, cast iron, non-ferrous metals and high-temp alloys, 2 flutes, 30 degree helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, bright/uncoated. Manufacturer part number 30330.

Specifications

Series
03B
Unit of Measure
Inch
Shank Diameter (Fractional)
1/4
Length of Cut (Fractional)
3/4
Number of Flutes
2
Shank Type
Straight
Overall Length (Fractional)
2-1/2
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
Bright/Uncoated
Cutting Diameter (Decimal)
0.2344
Cutting Diameter (Metric)
5.95
Length of Cut (Decimal)
0.7500
Length of Cut (Metric)
19.05
Shank Diameter (Decimal)
0.2500
Shank Diameter (Metric)
6.35
Overall Length (Decimal)
2.5000
Overall Length (Metric)
63.50
Flute Type
Spiral
Helix Angle
30 degrees
Cutting Diameter (Fractional)
15/64
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Shank Length (Metric)
44.45
Corner Radius Tolerance (Decimal)
+0.0000/-0.0010
Corner Radius Tolerance (Metric)
+0.000/-0.025
Coolant Option
External Coolant
Size System
Fractional
Helix Direction
Right
Chip Breaker
No
End Type
Ball
Variable Helix
No
Center Cutting
Yes
Shank Length (Decimal)
1.7500
Length Type
Long
Performance Class
General Purpose
Rake
Positive
Shank Length (Fractional)
1-3/4
Shank Tolerance
h6
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous, High-Temp Alloy
SGS Ball End Mill: 15/64" Dia, 3/4" LOC, 2-1/2" OAL, 2 Flute, Bright/Uncoated, Solid Carbide, 30330
$72.46
