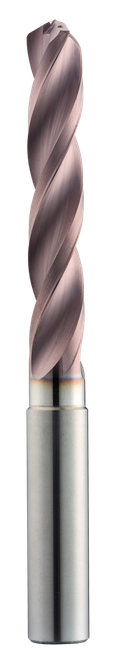

SGS 15.80mm Dia, 124 Degree Point, Solid Carbide Drill - 65261

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-65261
$997.90
SGS 15.80mm Dia, 124 Degree Point, 16.00mm Shank Dia, 133.00mm OAL, 3 Flute, 5xD, Coolant-Through, Ti-NAMITE-M (TM) Coated, Series 141K, Hi-PerCarb 141K, Solid Carbide Drill - 65261

Specifications

Series
141K
Unit of Measure
Metric
Diameter
15.80 mm
Shank Size
16 mm
Overall Length
133 mm
Cutting Direction
Right
Material
Solid Carbide
Cutting Diameter (Decimal)
0.63
Shank Diameter (Decimal)
0.63
Overall Length (Decimal)
5.24
Flute Type
Spiral
Helix Angle
30 degrees
Primary Workpiece Material
(K) Cast Iron
Secondary Workpiece Material
(P) Steel|(M) Stainless Steel|(N) Non-Ferrous Materials|(S) High Temp Alloy
Cutting Diameter Tolerance (Decimal)
+.00028 / +.00098
Cutting Diameter Tolerance (Metric)
+.0071 / +.0251
Shank Diameter Tolerance (ISO)
h6
Coolant Option
Internal Coolant
Coating Description
Ti-NAMITE-M (TM)
Additional Geometry
Right Hand Cut Direction (RHC)
High Performance
Yes
Weldon Flat
No
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Point Angle
124 degrees
Flute Length (Decimal)
3.27
DIN Standard
DIN 6537
Number of Margins
3
Flute Length
83 mm
Usable Length (Decimal)
2.49
Usable Length (Metric)
63
Self Centering
Yes
Length Of Cut
5 x D
SGS 15.80mm Dia, 124 Degree Point, Solid Carbide Drill - 65261
$997.90
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
