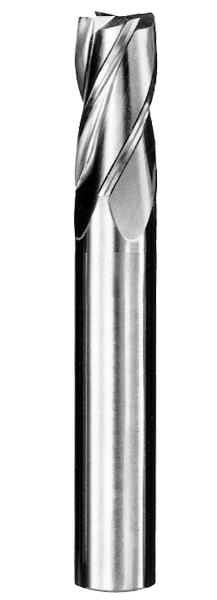

SGS Square End Mill: 16.00mm Dia, 32.00mm LOC, 92.00mm OAL, 3 Flute, Bright/Uncoated, Solid Carbide, 44711

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-44711
$383.41

SGS 43MS square end mill for non-ferrous metals, 3 flutes, 38 degree helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, bright/uncoated. Manufacturer part number 44711.

Specifications

Series
43MS
Unit of Measure
Metric
Cutting Diameter (Metric)
16.00
Shank Diameter (Metric)
16.00
Length of Cut (Metric)
32.00
Number of Flutes
3
Shank Type
Straight
Overall Length (Metric)
92.00
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
Bright/Uncoated
Cutting Diameter (Decimal)
0.6299
Length of Cut (Decimal)
1.2598
Shank Diameter (Decimal)
0.6299
Overall Length (Decimal)
3.6220
Flute Type
Spiral
Helix Angle
38 degrees
Shank Length (Metric)
59.99
Size System
Metric
Secondary Workpiece Material
Plastics, Composites
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.00043
Cutting Diameter Tolerance (Metric)
+0.000/-0.011
End Type
Square
Coolant Option
External Coolant
Shank Length (Decimal)
2.3620
Performance Class
High Performance
Rake
Positive
Shank Tolerance
h6
Length Type
Stub
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Helix Direction
Right
Workpiece Material
Non-Ferrous
SGS Square End Mill: 16.00mm Dia, 32.00mm LOC, 92.00mm OAL, 3 Flute, Bright/Uncoated, Solid Carbide, 44711
$383.41
