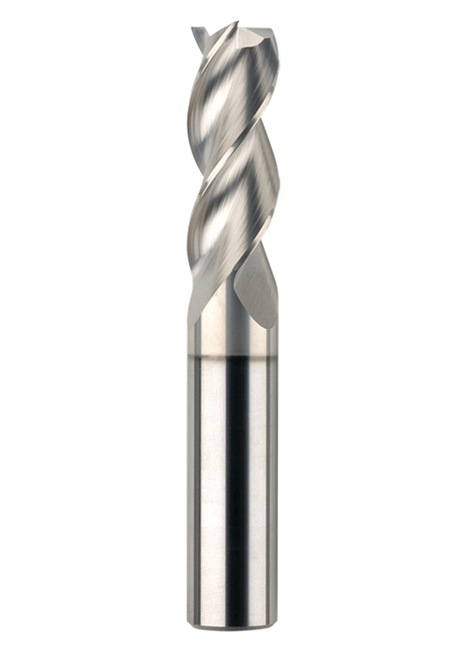

SGS 16.00mm Dia, 3 Flute, Square End End Mill - 44900

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-44900
$576.56
SGS 16.00mm Dia, 64.00mm LOC, 16.00mm Shank Dia, 3 Flute, 38 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series 43MS, S-Carb, Square End End Mill - 44900

Specifications

Series
43MS
Unit of Measure
Metric
Diameter
16 mm
Length of Cut
64 mm
Shank Size
16 mm
Number Of Flutes
3
Shank Type
Straight
Overall Length
125 mm
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
TIB2
Cutting Diameter (Decimal)
0.63
Length of Cut (Decimal)
2.52
Shank Diameter (Decimal)
0.63
Overall Length (Decimal)
4.93
Flute Type
Spiral
Helix Angle
38 degrees
End Configuration
Square End
Primary Workpiece Material
(N) Non-Ferrous Materials
Secondary Workpiece Material
Plastics & Composites
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.00043
Cutting Diameter Tolerance (Metric)
+0.000/-0.011
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Coating Description
Ti-NAMITE-B (TIB2)
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
Yes
Weldon Flat
No
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
SGS 16.00mm Dia, 3 Flute, Square End End Mill - 44900
$576.56
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
