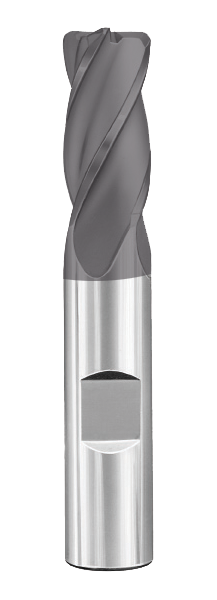

SGS Corner Radius End Mill: 16.00mm Dia, 32.00mm LOC, 89.00mm OAL, 3.00mm Corner Radius, 4 Flute, AlTiN (Ti-NAMITE-A), Solid Carbide, 40040

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-40040
$262.09

SGS 01C corner radius end mill for steel, stainless steel, cast iron, non-ferrous metals and high-temp alloys, 4 flutes, 30 degree helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, AlTiN coating. Manufacturer part number 40040.

Specifications

Series
01C
Unit of Measure
Metric
Shank Diameter (Metric)
16.00
Length of Cut (Metric)
32.00
Number of Flutes
4
Shank Type
Straight
Overall Length (Metric)
89.00
Material
Solid Carbide
Coating/Finish
AlTiN
Cutting Diameter (Decimal)
0.6299
Length of Cut (Decimal)
1.2598
Shank Diameter (Decimal)
0.6299
Overall Length (Decimal)
3.5039
Flute Type
Spiral
Helix Angle
30 degrees
Cutting Diameter (Metric)
16.00
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Size System
Metric
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Helix Direction
Right
Hand Direction
Right
End Type
Corner Radius
Performance Class
General Purpose
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Shank Length (Decimal)
2.2400
Corner Radius (Decimal)
0.1180
Shank Length (Metric)
56.90
Corner Radius (Metric)
3.00
Length Type
Stub
Rake
Positive
Shank Tolerance
h6
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous, High-Temp Alloy
SGS Corner Radius End Mill: 16.00mm Dia, 32.00mm LOC, 89.00mm OAL, 3.00mm Corner Radius, 4 Flute, AlTiN (Ti-NAMITE-A), Solid Carbide, 40040
$262.09
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
