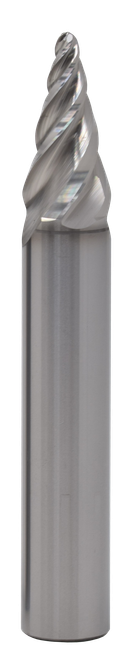

SGS 16.00mm Dia, 4 Flute, Tapered (Ball) End Mill - 45734

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-45734
$497.52
SGS 16.00mm Dia, 15.00mm LOC, 16.00mm Shank Dia, 4 Flute, 20 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series APFB, S-Carb APF-B Barrel, Tapered (Ball) End Mill - 45734

Specifications

Series
APFB
Unit of Measure
Metric
Length of Cut
15 mm
Number Of Flutes
4
Shank Type
Straight
Overall Length
109 mm
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-B (TIB2)
Cutting Diameter (Decimal)
0.63
Length of Cut (Decimal)
0.60
Shank Diameter (Decimal)
0.63
Overall Length (Decimal)
4.30
Flute Type
Spiral
Helix Angle
15-55 degrees
Primary Workpiece Material
(N) Non-Ferrous Materials
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Rake Angle
Positive
Side Profile
Tapered Circle Segment
High Performance
Yes
Weldon Flat
No
Variable Helix
Yes
Center Cutting
Yes
Chip Breaker
No
Cutting Diameter
16 mm
Tip Diameter (Decimal)
0.16
Shank Diameter
16 mm
End Type
Tapered (Ball)
Tip Radius (Decimal)
0.08
Tip Radius (Metric)
2
Tapered Radius (Decimal)
29.53
Tapered Radius (Metric)
750
Blended Radius (Decimal)
0.12
Blended Radius (Metric)
3
Centerline (α) Angle
30 degrees
SGS 16.00mm Dia, 4 Flute, Tapered (Ball) End Mill - 45734
$497.52
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
