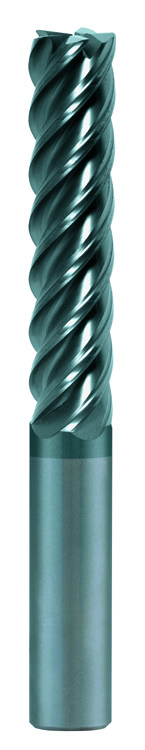

SGS Square End Mill: 16.00mm Dia, 32.00mm LOC, 89.00mm OAL, 5 Flute, AlTiN (Ti-NAMITE-A), Solid Carbide, 42618

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-42618
$410.15

SGS 55M square end mill for steel, stainless steel, cast iron and high-temp alloys, 5 flutes, 45 degree helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, AlTiN coating. Manufacturer part number 42618.

Specifications

Series
55M
Unit of Measure
Metric
Shank Diameter (Metric)
16.00
Length of Cut (Metric)
32.00
Overall Length (Metric)
89.00
Number of Flutes
5
Shank Type
Straight
Shank Length (Decimal)
2.2441
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
AlTiN
Cutting Diameter (Decimal)
0.6299
Length of Cut (Decimal)
1.2598
Shank Diameter (Decimal)
0.6299
Overall Length (Decimal)
3.5039
Flute Type
Spiral
Helix Angle
45 degrees
Size System
Metric
Cutting Diameter (Metric)
16.00
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
End Type
Square
Coolant Option
External Coolant
Shank Length (Metric)
57.00
Performance Class
High Performance
Rake
Positive
Shank Tolerance
h6
Length Type
Stub
Workpiece Material
Steel, Stainless Steel, Cast Iron, High-Temp Alloy
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Helix Direction
Right
SGS Square End Mill: 16.00mm Dia, 32.00mm LOC, 89.00mm OAL, 5 Flute, AlTiN (Ti-NAMITE-A), Solid Carbide, 42618
$410.15
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
