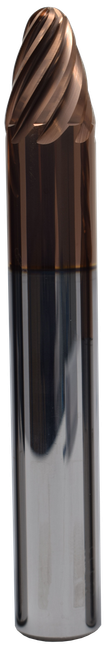

SGS 16.00mm Dia, 8 Flute, Tapered (Ball) End Mill - 45717

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-45717
$514.44
SGS 16.00mm Dia, 18.50mm LOC, 16.00mm Shank Dia, 8 Flute, 20 Degree Helix, Ti-NAMITE-H (TH) Coated, Series 67B, Multi-Carb Barrel, Tapered (Ball) End Mill - 45717

Specifications

Series
67B
Unit of Measure
Metric
Length of Cut
18.50 mm
Number Of Flutes
8
Shank Type
Straight
Overall Length
109 mm
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-H (TH)
Cutting Diameter (Decimal)
0.63
Length of Cut (Decimal)
0.73
Shank Diameter (Decimal)
0.63
Overall Length (Decimal)
4.30
Flute Type
Spiral
Helix Angle
20 degrees
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (S) High Temp Alloy"
Secondary Workpiece Material
(H) Hardened Materials
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Rake Angle
Positive
Side Profile
Tapered Circle Segment
High Performance
Yes
Weldon Flat
No
Variable Helix
Yes
Center Cutting
Yes
Chip Breaker
No
Cutting Diameter
16 mm
Tip Diameter (Decimal)
0.24
Shank Diameter
16 mm
End Type
Tapered (Ball)
Tip Radius (Decimal)
0.12
Tip Radius (Metric)
3
Tapered Radius (Decimal)
2.37
Tapered Radius (Metric)
60
Blended Radius (Decimal)
0.20
Blended Radius (Metric)
5
Centerline (α) Angle
20 degrees
SGS 16.00mm Dia, 8 Flute, Tapered (Ball) End Mill - 45717
$514.44
