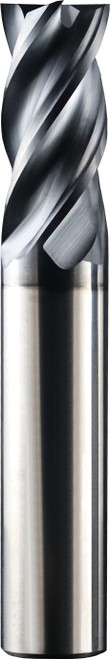

SGS 18.00mm Dia, 4 Flute, Square End End Mill - 46508

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-46508
$643.33
SGS 18.00mm Dia, 32.00mm LOC, 18.00mm Shank Dia, 4 Flute, 35-38 Degree Helix, Ti-NAMITE-X (TX) Coated, Series Z1MS, Z-Carb, Square End End Mill - 46508

Specifications

Series
Z1MS
Unit of Measure
Metric
Diameter
18 mm
Length of Cut
32 mm
Shank Size
18 mm
Number Of Flutes
4
Shank Type
Straight
Overall Length
92 mm
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
TX
Cutting Diameter (Decimal)
0.71
Length of Cut (Decimal)
1.26
Shank Diameter (Decimal)
0.71
Overall Length (Decimal)
3.63
Flute Type
Spiral
Helix Angle
35-38 degrees
End Configuration
Square End
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (S) High Temp Alloy"
Secondary Workpiece Material
(H) Hardened Materials
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Shank Diameter Tolerance (ISO)
h6
Coolant Option
JetStream Coolant Slots
Coating Description
Ti-NAMITE-X (TX)
Additional Geometry
Flute Spacing Unequal / Right Hand Cut Direction (RHC)
Rake Angle
Variable
DIN Standard (Shank)
DIN 6535 HB
High Performance
Yes
Weldon Flat
No
Variable Helix
Yes
Center Cutting
Yes
Chip Breaker
No
