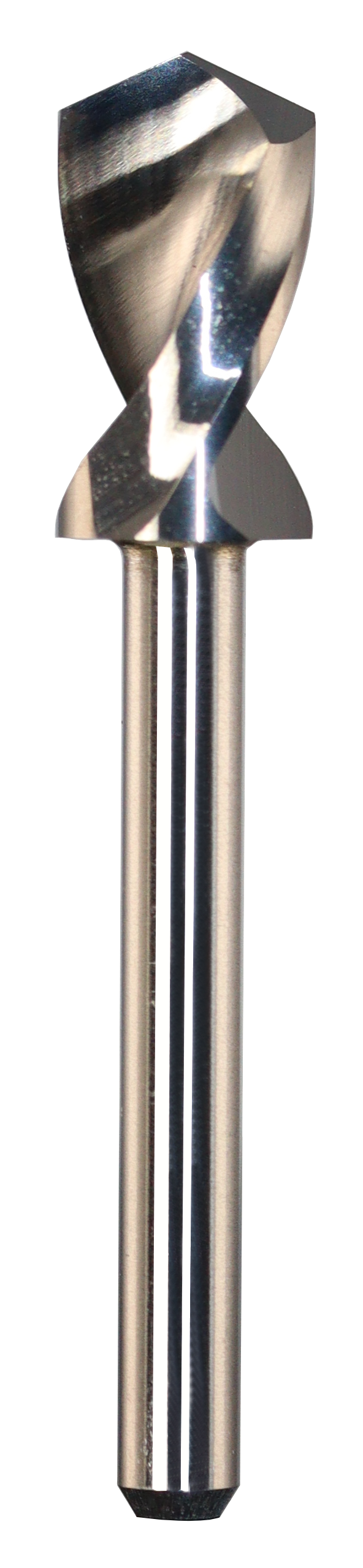

SGS #19, 130 Degree Point, Solid Carbide Drill - 06103

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-06103
$23.20
SGS #19, 130 Degree Point, 1/8" Shank Dia, 1-1/2" OAL, 2 Flute, Uncoated, Series M155, Micro - Inverse Diameter, Solid Carbide Drill - 06103

Specifications

Series
M155
Unit of Measure
Fractional
Shank Size
1/8 Inch
Overall Length
1-1/2 Inch
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
Uncoated
Cutting Diameter (Decimal)
0.17
Cutting Diameter (Metric)
4.22
Shank Diameter (Decimal)
0.13
Shank Diameter (Metric)
3.18
Overall Length (Decimal)
1.50
Overall Length (Metric)
38.10
Flute Type
Spiral
Helix Angle
30 degrees
Primary Workpiece Material
(N) Non-Ferrous Materials
Secondary Workpiece Material
(S) High Temp Alloy
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Additional Geometry
Right Hand Cut Direction (RHC)
High Performance
No
Weldon Flat
No
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Point Angle
130 degrees
Cutting Diameter (Wire)
#19
Flute Length (Decimal)
0.50
Flute Length (Metric)
12.70
Number of Margins
1
Flute Length
1/2 Inch
Usable Length (Decimal)
0.50
Usable Length (Metric)
12.70
Number of Flutes
2
Usable Length (Fractional)
1/2
SGS #19, 130 Degree Point, Solid Carbide Drill - 06103
$23.20
