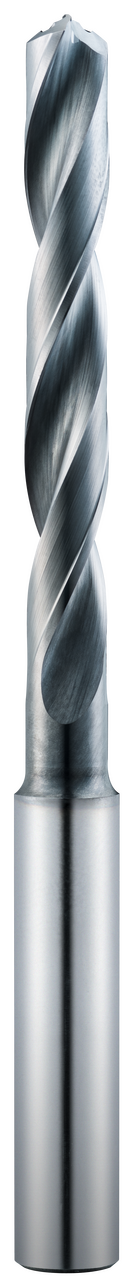

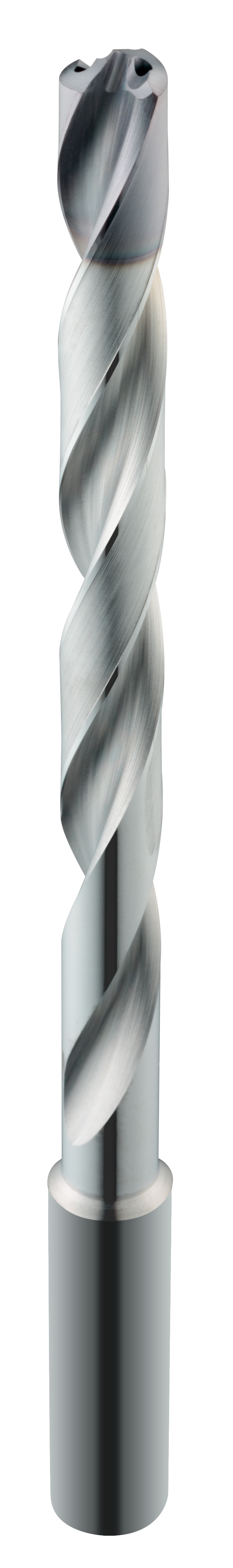

SGS 19/64" Dia, 135 Degree Point, 0.3150" Shank Dia, 3.5827" OAL, 2 Flute, 5xD, Coolant-Through, Ti-NAMITE-X (TX) Coated, Series 142P, Hi-PerCarb 142P, Solid Carbide Drill - 56450
Specifications
Unit of Measure
Fractional
Cutting Diameter (Decimal)
0.30
Cutting Diameter (Metric)
7.54
Shank Diameter (Decimal)
0.32
Shank Diameter (Metric)
8
Overall Length (Decimal)
3.59
Overall Length (Metric)
91
Primary Workpiece Material
"(P) Steel, (N) Non-Ferrous Materials, (H) Hardened Materials"
Secondary Workpiece Material
(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy
Cutting Diameter Tolerance (Decimal)
+.00024 / +.00083
Cutting Diameter Tolerance (Metric)
+.0061 / +.0211
Shank Diameter Tolerance (ISO)
h6
Coolant Option
Internal Coolant
Coating Description
Ti-NAMITE-X (TX)
Additional Geometry
Right Hand Cut Direction (RHC)
Flute Length (Decimal)
2.09
Usable Length (Decimal)
1.70
Usable Length (Metric)
43
Point Length (Decimal)
0.07
Point Length (Metric)
1.56
