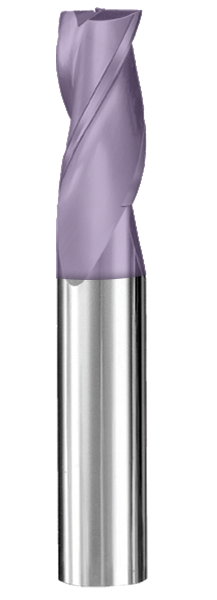

SGS 19/64" Dia, 3 Flute, Square End End Mill - 30789

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-30789
$89.22
SGS 19/64" Dia, 0.8120" LOC, 5/16" Shank Dia, 3 Flute, 30 Degree Helix, Ti-NAMITE-C (TiCN) Coated, Series 05S, Square End End Mill - 30789

Specifications

Series
05S
Unit of Measure
Fractional
Diameter
19/64 Inch
Shank Size
5/16 Inch
Number Of Flutes
3
Shank Type
Straight
Overall Length
2-1/2 Inch
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
TiCN
Cutting Diameter (Decimal)
0.30
Cutting Diameter (Metric)
7.54
Length of Cut (Decimal)
0.82
Length of Cut (Metric)
20.62
Shank Diameter (Decimal)
0.32
Shank Diameter (Metric)
7.94
Overall Length (Decimal)
2.50
Overall Length (Metric)
63.50
Flute Type
Spiral
Helix Angle
30 degrees
End Configuration
Square End
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (N) Non-Ferrous Materials, (S) High Temp Alloy"
Secondary Workpiece Material
(H) Hardened Materials
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Coating Description
Ti-NAMITE-C (TiCN)
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
No
Weldon Flat
No
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
SGS 19/64" Dia, 3 Flute, Square End End Mill - 30789
$89.22
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
