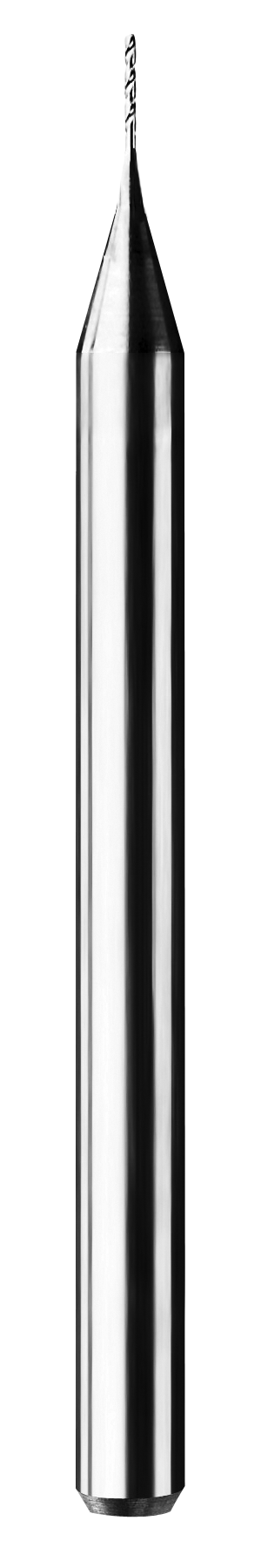

SGS 2.30mm Dia, 130 Degree Point, Solid Carbide Drill - 07637

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-07637
$48.05
SGS 2.30mm Dia, 130 Degree Point, 3.00mm Shank Dia, 60.00mm OAL, 2 Flute, Ti-NAMITE-A (AlTiN) Coated, Series M226, Micro, Solid Carbide Drill - 07637

Specifications

Series
M226
Unit of Measure
Metric
Diameter
2.30 mm
Shank Size
3 mm
Overall Length
60 mm
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-A (AlTiN)
Cutting Diameter (Decimal)
0.10
Shank Diameter (Decimal)
0.12
Overall Length (Decimal)
2.37
Flute Type
Spiral
Helix Angle
33 degrees
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (N) Non-Ferrous Materials, (S) High Temp Alloy"
Secondary Workpiece Material
(H) Hardened Materials
Cutting Diameter Tolerance (Decimal)
+.00000 / -.00030
Cutting Diameter Tolerance (Metric)
+.0000 / -.0076
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Additional Geometry
Right Hand Cut Direction (RHC)
High Performance
No
Weldon Flat
No
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Point Angle
130 degrees
Flute Length (Decimal)
1.09
Number of Margins
1
Flute Length
27.60 mm
Number of Flutes
2
SGS 2.30mm Dia, 130 Degree Point, Solid Carbide Drill - 07637
$48.05
