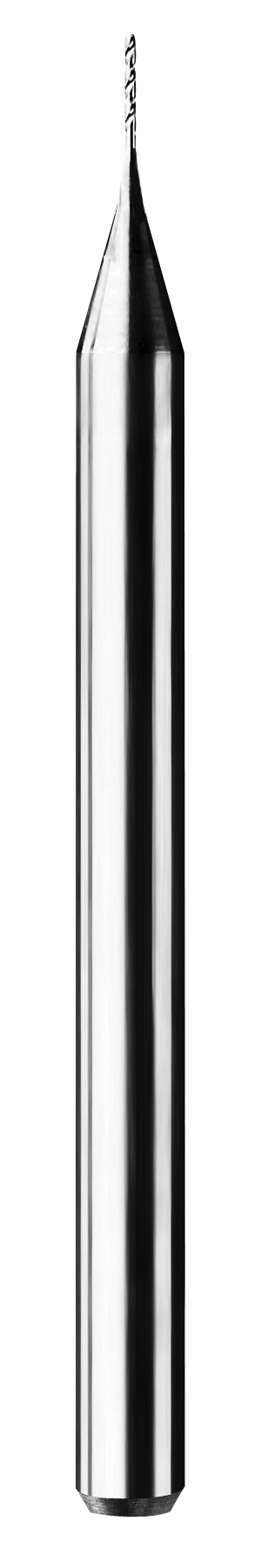

SGS Micro Drill: 2.88mm Dia, 10.20mm Flute Length, 38.00mm OAL, 130° Point, AlTiN (Ti-NAMITE-A), Solid Carbide, 07706

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-07706
$16.25

SGS M226 micro drill for steel, stainless steel, cast iron, non-ferrous metals and high-temp alloys, 2 flutes, 33 degree helix, 130 degree point, spiral flutes, straight shank, external coolant. Solid carbide, AlTiN coating. Manufacturer part number 07706.

Specifications

Series
M226
Unit of Measure
Metric
Shank Diameter (Metric)
3.00
Flute Length (Metric)
10.20
Overall Length (Metric)
38.00
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
AlTiN
Cutting Diameter (Decimal)
0.1134
Shank Diameter (Decimal)
0.1181
Overall Length (Decimal)
1.4961
Flute Type
Spiral
Helix Angle
33 degrees
Cutting Diameter (Metric)
2.88
Secondary Workpiece Material
Hardened Steel
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0003
Cutting Diameter Tolerance (Metric)
+0.000/-0.008
Size System
Metric
Coolant Option
External Coolant
Shank Type
Straight
Shank Length (Decimal)
1.0945
Helix Direction
Right
Variable Helix
No
Shank Length (Metric)
27.80
Chip Breaker
No
Point Angle
130 degrees
Flute Length (Decimal)
0.4016
Number of Margins
1
Usable Length (Decimal)
0.2315
Number of Flutes
2
Shank Tolerance
h6
Usable Length (Metric)
5.88
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous, High-Temp Alloy
SGS Micro Drill: 2.88mm Dia, 10.20mm Flute Length, 38.00mm OAL, 130° Point, AlTiN (Ti-NAMITE-A), Solid Carbide, 07706
$16.25
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
