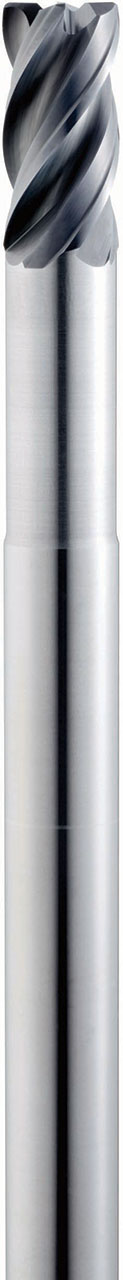

SGS Corner Radius End Mill: 20.00mm Dia, 24.00mm LOC, 140.00mm OAL, 1.50mm Corner Radius, 80.01mm Reach, 4 Flute, TX (Ti-NAMITE-X), Solid Carbide, 46837

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-46837
$926.80

SGS ZPMC corner radius end mill for steel, stainless steel, cast iron and high-temp alloys, 4 flutes, variable helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, Ti-NAMITE-X coating. Manufacturer part number 46837.

Specifications

Series
ZPMC
Unit of Measure
Metric
Shank Diameter (Metric)
20.00
Length of Cut (Metric)
24.00
Number of Flutes
4
Shank Type
Straight
Overall Length (Metric)
140.00
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-X
Cutting Diameter (Decimal)
0.7874
Length of Cut (Decimal)
0.9449
Shank Diameter (Decimal)
0.7874
Overall Length (Decimal)
5.5118
Flute Type
Spiral
Helix Angle
35-38 degrees
Cutting Diameter (Metric)
20.00
Secondary Workpiece Material
Hardened Steel
Reach (Decimal)
3.1500
Reach (Metric)
80.01
Neck Diameter (Decimal)
0.7670
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Size System
Metric
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Helix Direction
Right
Hand Direction
Right
End Type
Corner Radius
Performance Class
High Performance
Rake
Variable
Variable Helix
Yes
Center Cutting
Yes
Chip Breaker
No
Type
Z-Carb-AP
Shank Length (Decimal)
2.3620
Corner Radius (Decimal)
0.0591
Shank Length (Metric)
59.99
Neck Diameter (Metric)
19.48
Corner Radius (Metric)
1.50
Length Type
Long Reach Neck
Maximum Workpiece Hardness
45 HRC
Shank Tolerance
h6
Workpiece Material
Steel, Stainless Steel, Cast Iron, High-Temp Alloy
