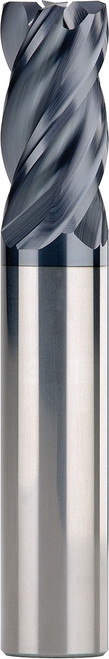

SGS 20.00mm Dia, 4 Flute, Corner Radius End Mill - 46926

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-46926
$767.98
SGS 20.00mm Dia, 38.00mm LOC, 20.00mm Shank Dia, 3.00mm Radius, 4 Flute, 35-38 Degree Helix, Ti-NAMITE-X (TX) Coated, Series ZPMC, Z-Carb-AP, Corner Radius End Mill - 46926

Specifications

Series
ZPMC
Unit of Measure
Metric
Length of Cut
38 mm
Shank Size
20 mm
Number Of Flutes
4
Shank Type
Weldon (Drive Flat)
Overall Length
104 mm
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-X (TX)
Cutting Diameter (Decimal)
0.79
Length of Cut (Decimal)
1.50
Shank Diameter (Decimal)
0.79
Overall Length (Decimal)
4.10
Flute Type
Spiral
Helix Angle
35-38 degrees
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (S) High Temp Alloy"
Secondary Workpiece Material
(H) Hardened Materials
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Shank Diameter Tolerance (ISO)
h6
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Additional Geometry
Flute Spacing Unequal / Right Hand Cut Direction (RHC)
Rake Angle
Variable
DIN Standard (Shank)
DIN 6535 HB
High Performance
Yes
Weldon Flat
Yes
Variable Helix
Yes
Center Cutting
Yes
Chip Breaker
No
Type
Z-Carb-HPR
Cutting Diameter
20 mm
Corner Radius (Decimal)
0.12
Corner Radius
3 mm
SGS 20.00mm Dia, 4 Flute, Corner Radius End Mill - 46926
$767.98
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
