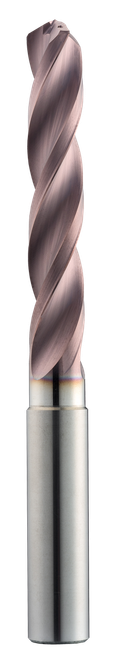

SGS #21, 124 Degree Point, Solid Carbide Drill - 55164

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-55164
$284.42
SGS #21, 124 Degree Point, 0.2362" Shank Dia, 2.9130" OAL, 3 Flute, 5xD, Coolant-Through, Ti-NAMITE-M (TM) Coated, Series 141K, Hi-PerCarb 141K, Solid Carbide Drill - 55164

Specifications

Series
141K
Unit of Measure
Imperial
Diameter
0.16 Inch
Shank Size
0.24 Inch
Overall Length
2.92 Inch
Cutting Direction
Right
Material
Solid Carbide
Cutting Diameter (Metric)
4.04
Shank Diameter (Metric)
6
Overall Length (Metric)
73.99
Flute Type
Spiral
Helix Angle
30 degrees
Primary Workpiece Material
(K) Cast Iron
Secondary Workpiece Material
(P) Steel|(M) Stainless Steel|(N) Non-Ferrous Materials|(S) High Temp Alloy
Cutting Diameter Tolerance (Decimal)
+.00016 / +.00063
Cutting Diameter Tolerance (Metric)
+.0041 / +.0160
Shank Diameter Tolerance (ISO)
h6
Coolant Option
Internal Coolant
Coating Description
Ti-NAMITE-M (TM)
Additional Geometry
Right Hand Cut Direction (RHC)
High Performance
Yes
Weldon Flat
No
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Point Angle
124 degrees
Cutting Diameter (Wire)
#21
Flute Length (Metric)
35.99
DIN Standard
DIN 6537
Number of Margins
3
Flute Length
1.42 Inch
Usable Length (Decimal)
1.15
Usable Length (Metric)
29
Self Centering
Yes
Length Of Cut
5 x D
SGS #21, 124 Degree Point, Solid Carbide Drill - 55164
$284.42
