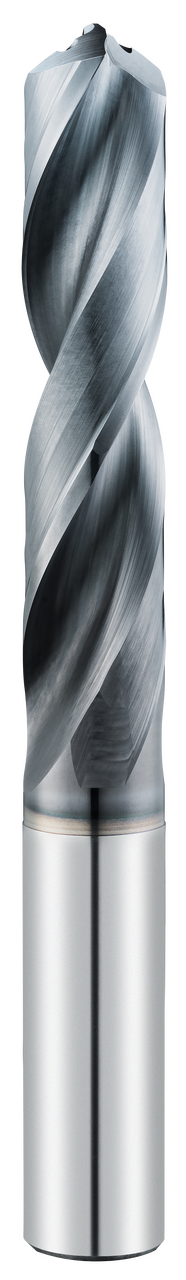

SGS #21, 135 Degree Point, 0.2362" Shank Dia, 2.5984" OAL, 2 Flute, 3xD, Coolant-Through, Ti-NAMITE-X (TX) Coated, Series 142P, Hi-PerCarb 142P, Solid Carbide Drill - 56404
Specifications
Cutting Diameter (Metric)
4.04
Shank Diameter (Metric)
6
Overall Length (Metric)
66
Primary Workpiece Material
"(P) Steel, (N) Non-Ferrous Materials, (H) Hardened Materials"
Secondary Workpiece Material
(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy
Cutting Diameter Tolerance (Decimal)
+.00016 / +.00063
Cutting Diameter Tolerance (Metric)
+.0041 / +.0160
Shank Diameter Tolerance (ISO)
h6
Coolant Option
Internal Coolant
Coating Description
Ti-NAMITE-X (TX)
Additional Geometry
Right Hand Cut Direction (RHC)
Cutting Diameter (Wire)
#21
Usable Length (Decimal)
0.67
Usable Length (Metric)
17
Point Length (Decimal)
0.04
Point Length (Metric)
0.84
