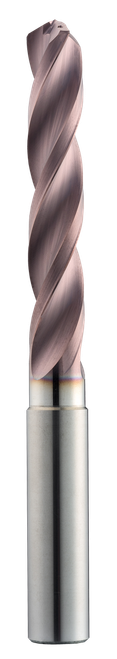

SGS 21/64" Dia, 124 Degree Point, 0.3937" Shank Dia, 4.0550" OAL, 3 Flute, 5xD, Coolant-Through, Ti-NAMITE-M (TM) Coated, Series 141K, Hi-PerCarb 141K, Solid Carbide Drill - 55176
Specifications
Unit of Measure
Fractional
Cutting Diameter (Decimal)
0.33
Cutting Diameter (Metric)
8.33
Shank Diameter (Decimal)
0.40
Shank Diameter (Metric)
10
Overall Length (Decimal)
4.06
Overall Length (Metric)
103
Primary Workpiece Material
(K) Cast Iron
Secondary Workpiece Material
(P) Steel|(M) Stainless Steel|(N) Non-Ferrous Materials|(S) High Temp Alloy
Cutting Diameter Tolerance (Decimal)
+.00024 / +.00083
Cutting Diameter Tolerance (Metric)
+.0061 / +.0211
Shank Diameter Tolerance (ISO)
h6
Coolant Option
Internal Coolant
Coating Description
Ti-NAMITE-M (TM)
Additional Geometry
Right Hand Cut Direction (RHC)
Flute Length (Decimal)
2.41
Flute Length (Metric)
61.01
Usable Length (Decimal)
1.93
Usable Length (Metric)
49
