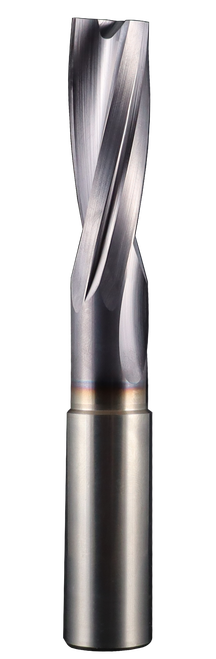

SGS Screw Machine Drill: 21/64" Dia, 1.1417" Flute Length, 3.1496" OAL, 180° Point, TX (Ti-NAMITE-X), Solid Carbide, 58518

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-58518
$223.94

SGS 136U screw machine drill for steel, stainless steel, cast iron, non-ferrous metals, high-temp alloys and hardened steel, 2 flutes, 15 degree helix, 180 degree point, spiral flutes, straight shank, external coolant. Solid carbide, Ti-NAMITE-X coating. Manufacturer part number 58518.

Specifications

Series
136U
Unit of Measure
Inch
Shank Length (Metric)
40.00
Hand Direction
Right
Material
Solid Carbide
Cutting Diameter (Decimal)
0.3281
Cutting Diameter (Metric)
8.33
Shank Diameter (Decimal)
0.3937
Shank Diameter (Metric)
10.00
Overall Length (Decimal)
3.1496
Overall Length (Metric)
80.00
Flute Type
Spiral
Helix Angle
15 degrees
Cutting Diameter (Fractional)
21/64
Secondary Workpiece Material
Plastics, Composites
Cutting Diameter Tolerance (Decimal)
+0.00024 / +0.00083
Cutting Diameter Tolerance (Metric)
+0.0060 / +0.0210
Number of Flutes
2
Coolant Option
External Coolant
Coating/Finish
Ti-NAMITE-X
Shank Type
Straight
Helix Direction
Right
Performance Class
High Performance
Variable Helix
No
Size System
Fractional
Chip Breaker
No
Type
Flat Bottom
Point Angle
180 degrees
Flute Length (Decimal)
1.1417
Flute Length (Metric)
29.00
Number of Margins
4
Usable Length (Decimal)
0.6956
Usable Length (Metric)
17.67
Self Centering
Yes
Reach Multiple
2xD
Shank Length (Decimal)
1.5748
Shank Tolerance
h6
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous, High-Temp Alloy, Hardened Steel
SGS Screw Machine Drill: 21/64" Dia, 1.1417" Flute Length, 3.1496" OAL, 180° Point, TX (Ti-NAMITE-X), Solid Carbide, 58518
$223.94
