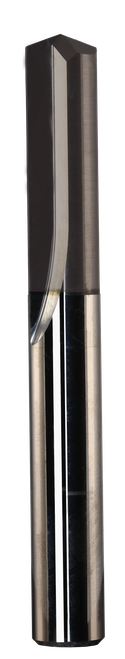

SGS #23, 140 Degree Point, Solid Carbide Drill - 56232

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-56232
$78.72
SGS #23, 140 Degree Point, 0.1540" Shank Dia, 2-1/16" OAL, 2 Flute, 3xD, Ti-NAMITE-A (AlTiN) Coated, Series 106, Straight Flute, Solid Carbide Drill - 56232

Specifications

Series
106
Unit of Measure
Imperial
Diameter
0.16 Inch
Shank Size
0.16 Inch
Overall Length
2.07 Inch
Cutting Direction
Right
Material
Solid Carbide
Cutting Diameter (Metric)
3.91
Shank Diameter (Metric)
3.91
Overall Length (Metric)
52.39
Overall Length (Fractional)
2-1/16
Flute Type
Spiral
Primary Workpiece Material
"(P) Steel, (K) Cast Iron"
Secondary Workpiece Material
(H) Hardened Materials
Cutting Diameter Tolerance (Decimal)
+.00000 / -.00050
Cutting Diameter Tolerance (Metric)
+.0000 / -.0127
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Coating Description
Ti-NAMITE-A (AlTiN)
Additional Geometry
Right Hand Cut Direction (RHC)
High Performance
No
Weldon Flat
No
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Point Angle
140 degrees
Cutting Diameter (Wire)
#23
Flute Length (Metric)
25.40
Flute Length (Fractional)
1
Number of Margins
2
Flute Length
1 Inch
Usable Length (Decimal)
0.80
Usable Length (Metric)
20.24
Usable Length (Fractional)
51/64
Length Of Cut
3 x D
SGS #23, 140 Degree Point, Solid Carbide Drill - 56232
$78.72
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
