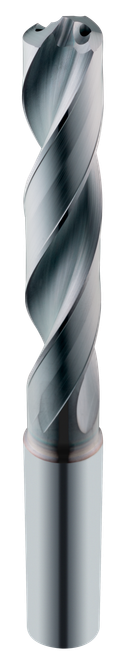

SGS Screw Machine Drill: 23/64" Dia, 2.4016" Flute Length, 4.0551" OAL, 137° Point, Internal Coolant, TX (Ti-NAMITE-X), Solid Carbide, 56455

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-56455
$417.67

SGS 142P screw machine drill for steel, non-ferrous metals and hardened steel, 2 flutes, 30 degree helix, 137 degree point, spiral flutes, straight shank, internal coolant. Solid carbide, Ti-NAMITE-X coating. Manufacturer part number 56455.

Specifications

Series
142P
Unit of Measure
Inch
Shank Length (Metric)
40.00
Hand Direction
Right
Material
Solid Carbide
Cutting Diameter (Decimal)
0.3594
Cutting Diameter (Metric)
9.13
Shank Diameter (Decimal)
0.3937
Shank Diameter (Metric)
10.00
Overall Length (Decimal)
4.0551
Overall Length (Metric)
103.00
Flute Type
Spiral
Helix Angle
30 degrees
Cutting Diameter (Fractional)
23/64
Secondary Workpiece Material
Stainless Steel, Cast Iron, High-Temp Alloy
Cutting Diameter Tolerance (Decimal)
+0.00024 / +0.00083
Cutting Diameter Tolerance (Metric)
+0.0061 / +0.0211
Number of Flutes
2
Coolant Option
Internal Coolant
Coating/Finish
Ti-NAMITE-X
Shank Type
Straight
Helix Direction
Right
Performance Class
High Performance
Variable Helix
No
Size System
Fractional
Chip Breaker
No
Point Angle
137 degrees
Flute Length (Decimal)
2.4016
Flute Length (Metric)
61.00
DIN Standard
DIN 6537
Number of Margins
4
Usable Length (Decimal)
1.9291
Usable Length (Metric)
49.00
Point Length (Decimal)
0.0744
Point Length (Metric)
1.89
Self Centering
Yes
Reach Multiple
5xD
Maximum Workpiece Hardness
50 HRC
Shank Length (Decimal)
1.5748
Shank Tolerance
h6
Workpiece Material
Steel, Non-Ferrous, Hardened Steel
SGS Screw Machine Drill: 23/64" Dia, 2.4016" Flute Length, 4.0551" OAL, 137° Point, Internal Coolant, TX (Ti-NAMITE-X), Solid Carbide, 56455
$417.67
