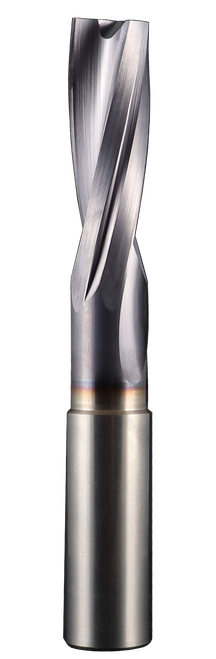

SGS 23/64" Dia, 180 Degree Point, Solid Carbide Drill - 58899

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-58899
$551.99
SGS 23/64" Dia, 180 Degree Point, 0.3937" Shank Dia, 4.5276" OAL, 2 Flute, 5xD, Coolant-Through, Ti-NAMITE-X (TX) Coated, Series 146U, Hi-PerCarb 146U Flat Bottom, Solid Carbide Drill - 58899

Specifications

Series
146U
Unit of Measure
Fractional
Diameter
23/64 Inch
Cutting Direction
Right
Material
Solid Carbide
Cutting Diameter (Decimal)
0.36
Cutting Diameter (Metric)
9.13
Shank Diameter (Decimal)
0.40
Shank Diameter (Metric)
10
Overall Length (Decimal)
4.53
Overall Length (Metric)
115
Flute Type
Spiral
Helix Angle
15 degrees
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (N) Non-Ferrous Materials, (S) High Temp Alloy, (H) Hardened Materials"
Secondary Workpiece Material
(N) Non-Ferrous Materials|Plastics & Composites
Cutting Diameter Tolerance (Decimal)
+.00024 / +.00083
Cutting Diameter Tolerance (Metric)
+.0060 / +.0210
Shank Diameter Tolerance (ISO)
h6
Coolant Option
Internal Coolant
Coating Description
Ti-NAMITE-X (TX)
Additional Geometry
Right Hand Cut Direction (RHC)
High Performance
Yes
Weldon Flat
No
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Type
Flat Bottom
Point Angle
180 degrees
Flute Length (Decimal)
2.33
Flute Length (Metric)
59
Number of Margins
4
Usable Length (Decimal)
1.84
Usable Length (Metric)
46.64
Self Centering
Yes
Length Of Cut
5 x D
SGS 23/64" Dia, 180 Degree Point, Solid Carbide Drill - 58899
$551.99
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
