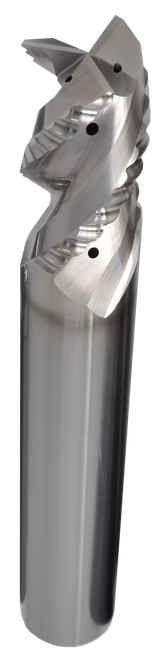

SGS Corner Radius End Mill: 25.00mm Dia, 43.00mm LOC, 108.00mm OAL, 3.00mm Corner Radius, 60.00mm Reach, 3 Flute, TiB2, Solid Carbide, 45000

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-45000
$1,272.97

SGS APR3 corner radius end mill for non-ferrous metals, 3 flutes, 38 degree helix, spiral flutes, center cutting, straight shank, internal coolant. Solid carbide, TiB2 coating. Manufacturer part number 45000.

Specifications

Series
APR3
Unit of Measure
Metric
Cutting Diameter (Metric)
25.00
Shank Diameter (Metric)
25.00
Number of Flutes
3
Shank Type
Straight
Length of Cut (Metric)
43.00
Material
Solid Carbide
Coating/Finish
TiB2
Cutting Diameter (Decimal)
0.9843
Length of Cut (Decimal)
1.6929
Shank Diameter (Decimal)
0.9843
Overall Length (Decimal)
4.2520
Flute Type
Spiral
Helix Angle
38 degrees
Size System
Metric
Reach (Decimal)
2.3622
Reach (Metric)
60.00
Neck Diameter (Decimal)
0.9350
Cutting Diameter Tolerance (Decimal)
-0.0004/-0.0040
Cutting Diameter Tolerance (Metric)
-0.010/-0.100
Helix Direction
Right
Corner Radius Tolerance (Decimal)
+0.0020/-0.0020
Corner Radius Tolerance (Metric)
+0.050/-0.050
Coolant Option
Internal Coolant
Hand Direction
Right
End Type
Corner Radius
Performance Class
High Performance
Rake
Positive
Variable Helix
No
Center Cutting
Yes
Chip Breaker
Yes
Type
S-Carb
Overall Length (Metric)
108.00
Corner Radius (Decimal)
0.1181
Neck Diameter (Metric)
23.75
Corner Radius (Metric)
3.00
Length Type
Long Reach Neck
Maximum Workpiece Hardness
150 HB
Shank Tolerance
h6
Workpiece Material
Non-Ferrous
SGS Corner Radius End Mill: 25.00mm Dia, 43.00mm LOC, 108.00mm OAL, 3.00mm Corner Radius, 60.00mm Reach, 3 Flute, TiB2, Solid Carbide, 45000
$1,272.97
