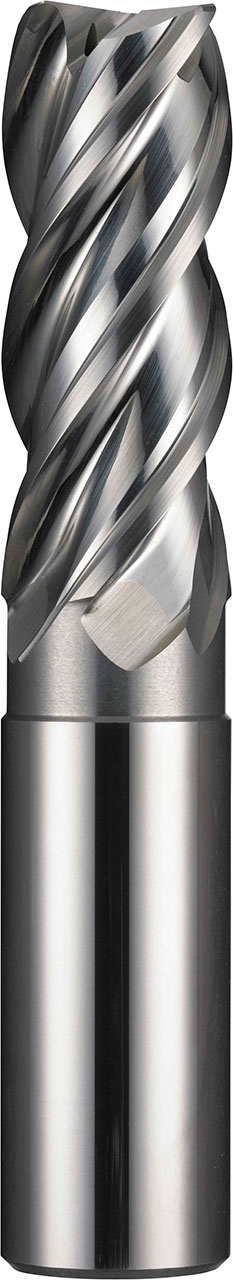

SGS Corner Radius End Mill: 25.00mm Dia, 63.00mm LOC, 130.00mm OAL, 4.01mm Corner Radius, 4 Flute, TiB2, Solid Carbide, 44764

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-44764
$1,891.67

SGS APF corner radius end mill for non-ferrous metals, 4 flutes, variable helix, spiral flutes, center cutting, straight shank, internal coolant. Solid carbide, TiB2 coating. Manufacturer part number 44764.

Specifications

Series
APF
Unit of Measure
Metric
Cutting Diameter (Metric)
25.00
Shank Diameter (Metric)
25.00
Number of Flutes
4
Shank Type
Straight
Length of Cut (Metric)
63.00
Material
Solid Carbide
Coating/Finish
TiB2
Cutting Diameter (Decimal)
0.9843
Length of Cut (Decimal)
2.4803
Shank Diameter (Decimal)
0.9843
Overall Length (Decimal)
5.1181
Flute Type
Spiral
Helix Angle
38/41 degrees
Neck Diameter (Metric)
23.75
Neck Diameter (Decimal)
0.9350
Cutting Diameter Tolerance (Decimal)
-0.0004/-0.0020
Cutting Diameter Tolerance (Metric)
-0.010/-0.050
Corner Radius (Metric)
4.01
Corner Radius Tolerance (Decimal)
+0.0000/-0.0012
Corner Radius Tolerance (Metric)
+0.000/-0.030
Coolant Option
Internal Coolant
Size System
Metric
Helix Direction
Right
Hand Direction
Right
End Type
Corner Radius
Variable Helix
Yes
Center Cutting
Yes
Chip Breaker
No
Type
S-Carb
Overall Length (Metric)
130.00
Corner Radius (Decimal)
0.1580
Shank Length (Decimal)
2.6380
Shank Length (Metric)
67.01
Length Type
Standard
Maximum Workpiece Hardness
150 HB
Performance Class
High Performance
Rake
Positive
Shank Tolerance
h6
Workpiece Material
Non-Ferrous
SGS Corner Radius End Mill: 25.00mm Dia, 63.00mm LOC, 130.00mm OAL, 4.01mm Corner Radius, 4 Flute, TiB2, Solid Carbide, 44764
$1,891.67
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
