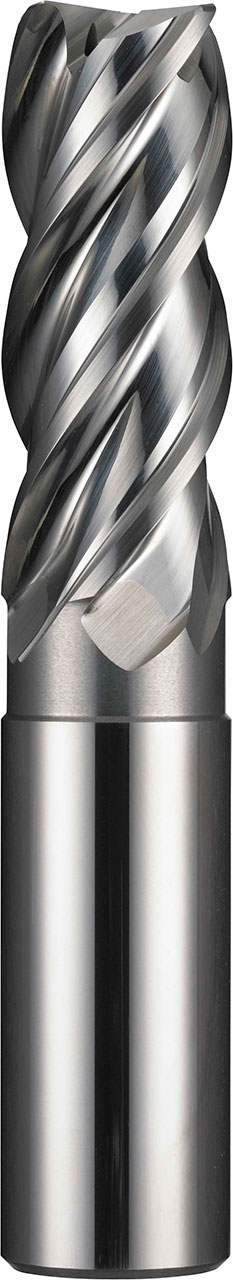

SGS 25.00mm Dia, 100.00mm LOC, 25.00mm Shank Dia, 4.98mm Radius, 4 Flute, Coolant-Through, 41 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series APF, S-Carb APF, Corner Radius End Mill - 44768
Specifications
Coating/Finish
Ti-NAMITE-B (TIB2)
Cutting Diameter (Decimal)
0.99
Length of Cut (Decimal)
3.94
Shank Diameter (Decimal)
0.99
Overall Length (Decimal)
6.89
Helix Angle
38/41 degrees
Primary Workpiece Material
(N) Non-Ferrous Materials
Neck Diameter (Decimal)
0.94
Cutting Diameter Tolerance (Decimal)
+0.0004/-0.0020
Cutting Diameter Tolerance (Metric)
+0.010/-0.050
Shank Diameter Tolerance (ISO)
h6
Corner Radius Tolerance (Decimal)
+0.0000/-0.0012
Corner Radius Tolerance (Metric)
+0.000/-0.030
Coolant Option
Internal Coolant
Additional Geometry
Right Hand Cut Direction (RHC)
Corner Radius (Decimal)
0.20
