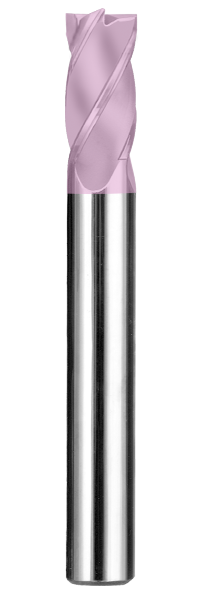

SGS 25.00mm Dia, 4 Flute, Square End End Mill - 46510

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-46510
$1,012.40
SGS 25.00mm Dia, 38.00mm LOC, 25.00mm Shank Dia, 4 Flute, 35-38 Degree Helix, Ti-NAMITE-X (TX) Coated, Series Z1MS, Z-Carb, Square End End Mill - 46510

Specifications

Series
Z1MS
Unit of Measure
Metric
Diameter
25 mm
Length of Cut
38 mm
Shank Size
25 mm
Number Of Flutes
4
Shank Type
Straight
Overall Length
104 mm
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
TX
Cutting Diameter (Decimal)
0.99
Length of Cut (Decimal)
1.50
Shank Diameter (Decimal)
0.99
Overall Length (Decimal)
4.10
Flute Type
Spiral
Helix Angle
35-38 degrees
End Configuration
Square End
Primary Workpiece Material
"(P) Steel, (M) Stainless Steel, (K) Cast Iron, (S) High Temp Alloy"
Secondary Workpiece Material
(H) Hardened Materials
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Shank Diameter Tolerance (ISO)
h6
Coolant Option
JetStream Coolant Slots
Coating Description
Ti-NAMITE-X (TX)
Additional Geometry
Flute Spacing Unequal / Right Hand Cut Direction (RHC)
Rake Angle
Variable
DIN Standard (Shank)
DIN 6535 HB
High Performance
Yes
Weldon Flat
No
Variable Helix
Yes
Center Cutting
Yes
Chip Breaker
No
SGS 25.00mm Dia, 4 Flute, Square End End Mill - 46510
$1,012.40
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
