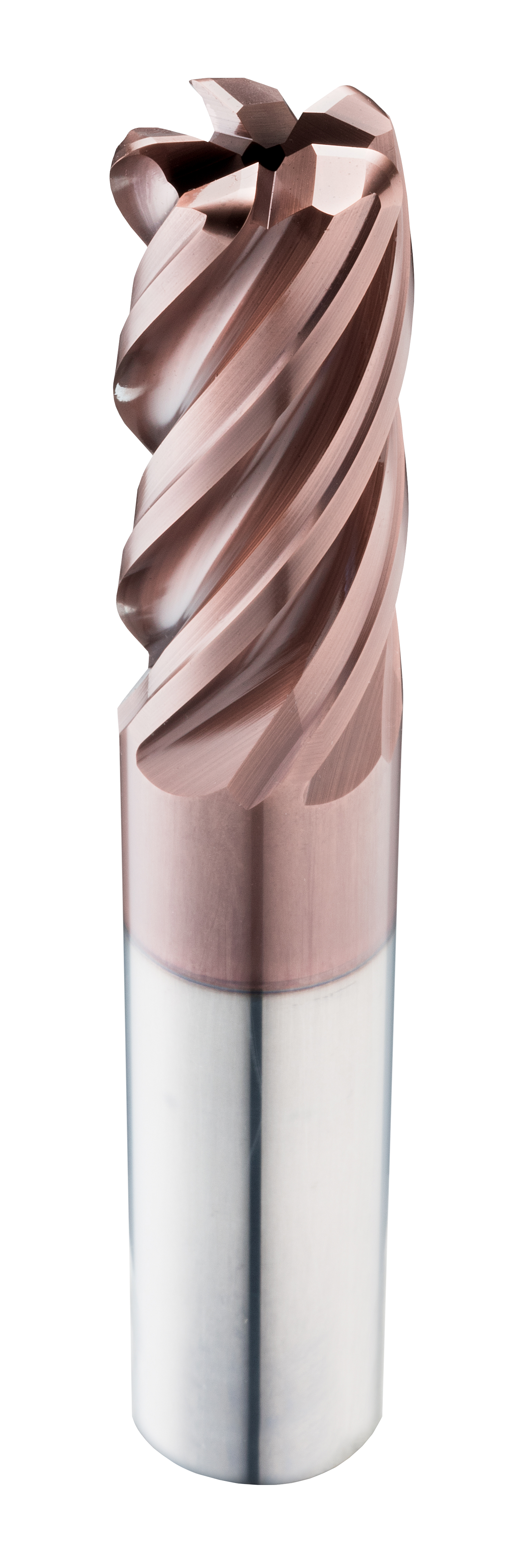

SGS Corner Radius End Mill: 25.00mm Dia, 53.00mm LOC, 121.00mm OAL, 3.00mm Corner Radius, 5 Flute, TM (Ti-NAMITE-M), Solid Carbide, 47081

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-47081
$1,172.56

SGS Z5C corner radius end mill for steel, stainless steel, cast iron and high-temp alloys, 5 flutes, 37 degree helix, spiral flutes, straight shank, external coolant. Solid carbide, Ti-NAMITE-M coating. Manufacturer part number 47081.

Specifications

Series
Z5C
Unit of Measure
Metric
Shank Diameter (Metric)
25.00
Length of Cut (Metric)
53.00
Number of Flutes
5
Shank Type
Straight
Overall Length (Metric)
121.00
Material
Solid Carbide
Coating/Finish
Ti-NAMITE-M
Cutting Diameter (Decimal)
0.9843
Length of Cut (Decimal)
2.0866
Shank Diameter (Decimal)
0.9843
Overall Length (Decimal)
4.7638
Flute Type
Spiral
Helix Angle
37 degrees
Corner Radius (Metric)
3.00
Cutting Diameter (Metric)
25.00
Secondary Workpiece Material
Hardened Steel
Non-Cutting Center Diameter (Decimal)
0.3450
Non-Cutting Center Diameter (Metric)
8.76
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.000/-0.050
Helix Direction
Right
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Hand Direction
Right
End Type
Corner Radius
Performance Class
High Performance
Rake
Positive
Shank Tolerance
h6
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Type
Z-Carb-HPR
Shank Length (Decimal)
2.6772
Corner Radius (Decimal)
0.1181
Shank Length (Metric)
68.00
Length Type
Standard
Size System
Metric
Workpiece Material
Steel, Stainless Steel, Cast Iron, High-Temp Alloy
SGS Corner Radius End Mill: 25.00mm Dia, 53.00mm LOC, 121.00mm OAL, 3.00mm Corner Radius, 5 Flute, TM (Ti-NAMITE-M), Solid Carbide, 47081
$1,172.56
