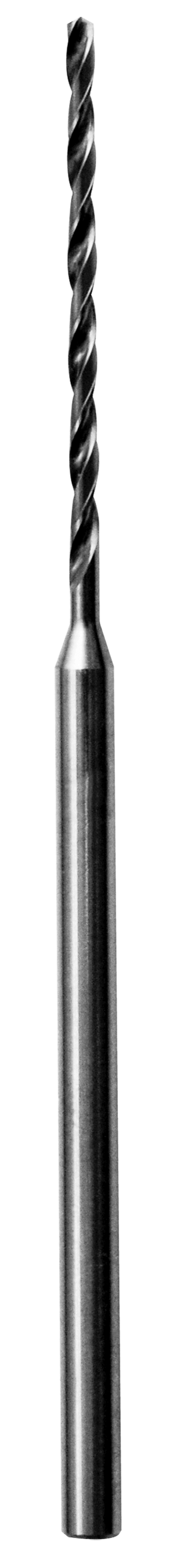

SGS 3.00mm Dia, 140 Degree Point, Solid Carbide Drill - 66010

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-66010
$61.06
SGS 3.00mm Dia, 140 Degree Point, 3.00mm Shank Dia, 46.00mm OAL, 2 Flute, 3xD, Ti-NAMITE-A (AlTiN) Coated, Series 106, Straight Flute, Solid Carbide Drill - 66010

Specifications

Series
106
Unit of Measure
Metric
Diameter
3 mm
Shank Size
3 mm
Overall Length
46 mm
Cutting Direction
Right
Material
Solid Carbide
Cutting Diameter (Decimal)
0.12
Shank Diameter (Decimal)
0.12
Overall Length (Decimal)
1.82
Flute Type
Spiral
Primary Workpiece Material
"(P) Steel, (K) Cast Iron"
Secondary Workpiece Material
(H) Hardened Materials
Cutting Diameter Tolerance (Decimal)
+.00000 / -.00050
Cutting Diameter Tolerance (Metric)
+.0000 / -.0127
Shank Diameter Tolerance (ISO)
h6
Coolant Option
External Coolant
Coating Description
Ti-NAMITE-A (AlTiN)
Additional Geometry
Right Hand Cut Direction (RHC)
High Performance
No
Weldon Flat
No
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Point Angle
140 degrees
Flute Length (Decimal)
0.63
DIN Standard
DIN 6539
Number of Margins
2
Flute Length
16 mm
Usable Length (Decimal)
0.48
Usable Length (Metric)
12
Length Of Cut
3 x D
