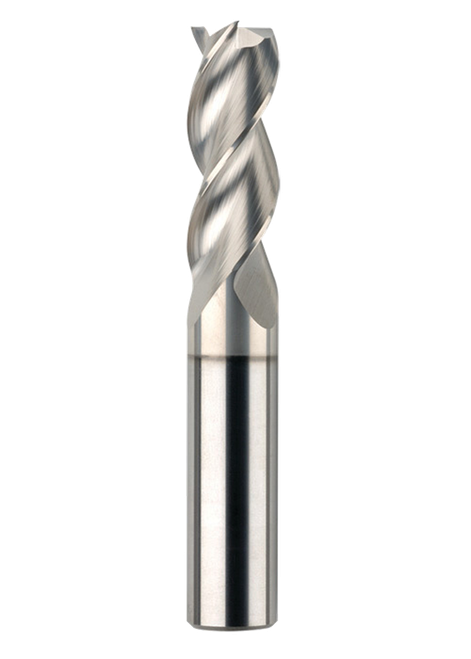

SGS Square End Mill: 3.00mm Dia, 8.00mm LOC, 52.00mm OAL, 3 Flute, TiB2, Solid Carbide, 44890

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-44890
$106.24

SGS 43MS square end mill for non-ferrous metals, 3 flutes, 38 degree helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, TiB2 coating. Manufacturer part number 44890.

Specifications

Series
43MS
Unit of Measure
Metric
Cutting Diameter (Metric)
3.00
Shank Diameter (Metric)
6.00
Length of Cut (Metric)
8.00
Number of Flutes
3
Shank Type
Straight
Overall Length (Metric)
52.00
Hand Direction
Right
Material
Solid Carbide
Coating/Finish
TiB2
Cutting Diameter (Decimal)
0.1181
Length of Cut (Decimal)
0.3150
Shank Diameter (Decimal)
0.2362
Overall Length (Decimal)
2.0472
Flute Type
Spiral
Helix Angle
38 degrees
Shank Length (Metric)
44.00
Size System
Metric
Secondary Workpiece Material
Plastics, Composites
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.00024
Cutting Diameter Tolerance (Metric)
+0.000/-0.006
End Type
Square
Coolant Option
External Coolant
Shank Length (Decimal)
1.7323
Performance Class
High Performance
Rake
Positive
Shank Tolerance
h6
Workpiece Material
Non-Ferrous
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Helix Direction
Right
Length Type
Standard
Maximum Workpiece Hardness
150 HB
SGS Square End Mill: 3.00mm Dia, 8.00mm LOC, 52.00mm OAL, 3 Flute, TiB2, Solid Carbide, 44890
$106.24
