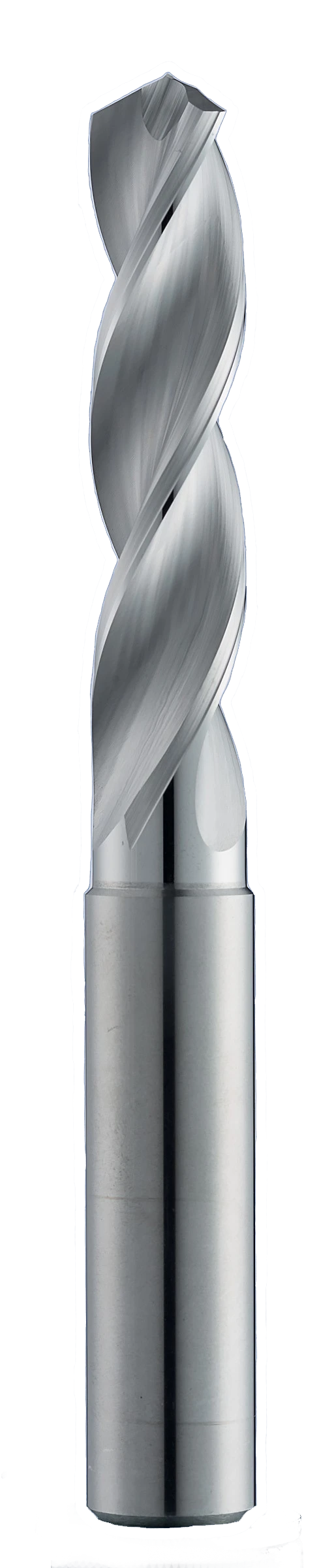

SGS Screw Machine Drill: 3/16" Dia, 1.732" Flute Length, 3.228" OAL, 124° Point, Bright/Uncoated, Solid Carbide, 55006

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-55006
$219.20

SGS 131N screw machine drill for non-ferrous metals, 3 flutes, 30 degree helix, 124 degree point, spiral flutes, straight shank, external coolant. Solid carbide, bright/uncoated. Manufacturer part number 55006.

Specifications

Series
131N
Unit of Measure
Inch
Shank Length (Decimal)
1.4170
Hand Direction
Right
Material
Solid Carbide
Cutting Diameter (Decimal)
0.1875
Cutting Diameter (Metric)
4.76
Shank Diameter (Decimal)
0.2362
Shank Diameter (Metric)
6.00
Overall Length (Decimal)
3.2280
Overall Length (Metric)
81.99
Flute Type
Spiral
Helix Angle
30 degrees
Size System
Fractional
Secondary Workpiece Material
Cast Iron, High-Temp Alloy
Cutting Diameter Tolerance (Decimal)
+0.00016 / +0.00063
Cutting Diameter Tolerance (Metric)
+0.0041 / +0.0160
Number of Flutes
3
Coolant Option
External Coolant
Coating/Finish
Bright/Uncoated
Shank Type
Straight
Helix Direction
Right
Performance Class
High Performance
Variable Helix
No
Shank Length (Metric)
35.99
Chip Breaker
No
Point Angle
124 degrees
Flute Length (Decimal)
1.7320
Flute Length (Metric)
43.99
DIN Standard
DIN 6537
Number of Margins
3
Usable Length (Decimal)
1.3780
Usable Length (Metric)
35.00
Self Centering
Yes
Reach Multiple
5xD
Cutting Diameter (Fractional)
3/16
Maximum Workpiece Hardness
175 HB
Shank Tolerance
h6
Workpiece Material
Non-Ferrous
SGS Screw Machine Drill: 3/16" Dia, 1.732" Flute Length, 3.228" OAL, 124° Point, Bright/Uncoated, Solid Carbide, 55006
$219.20
