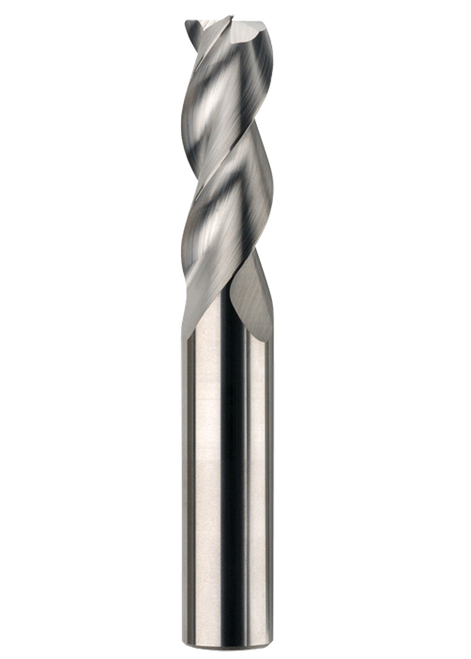

SGS Corner Radius End Mill: 3/16" Dia, 9/16" LOC, 2" OAL, .010" Corner Radius, 3 Flute, Bright/Uncoated, Solid Carbide, 34772

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-34772
$62.20

SGS 43CR corner radius end mill for non-ferrous metals, 3 flutes, 38 degree helix, spiral flutes, center cutting, straight shank, external coolant. Solid carbide, bright/uncoated. Manufacturer part number 34772.

Specifications

Series
43CR
Unit of Measure
Inch
Cutting Diameter (Fractional)
3/16
Shank Diameter (Fractional)
3/16
Number of Flutes
3
Shank Type
Straight
Length of Cut (Fractional)
9/16
Material
Solid Carbide
Coating/Finish
Bright/Uncoated
Cutting Diameter (Decimal)
0.1875
Cutting Diameter (Metric)
4.76
Length of Cut (Decimal)
0.5625
Length of Cut (Metric)
14.29
Shank Diameter (Decimal)
0.1875
Shank Diameter (Metric)
4.76
Overall Length (Decimal)
2.0000
Overall Length (Metric)
50.80
Flute Type
Spiral
Helix Angle
38 degrees
Shank Length (Decimal)
1.4375
Secondary Workpiece Material
Plastics, Composites
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.00032
Cutting Diameter Tolerance (Metric)
+0.000/-0.008
Shank Length (Metric)
36.51
Corner Radius Tolerance (Decimal)
+0.0000/-0.0020
Corner Radius Tolerance (Metric)
+0.000/-0.050
Coolant Option
External Coolant
Size System
Fractional
Helix Direction
Right
Hand Direction
Right
End Type
Corner Radius
Variable Helix
No
Center Cutting
Yes
Chip Breaker
No
Type
S-Carb
Overall Length (Fractional)
2
Corner Radius (Decimal)
0.0100
Corner Radius (Metric)
0.25
Length Type
Long
Maximum Workpiece Hardness
150 HB
Performance Class
High Performance
Rake
Positive
Shank Length (Fractional)
1-7/16
Shank Tolerance
h6
Workpiece Material
Non-Ferrous
SGS Corner Radius End Mill: 3/16" Dia, 9/16" LOC, 2" OAL, .010" Corner Radius, 3 Flute, Bright/Uncoated, Solid Carbide, 34772
$62.20
